Hallicrafters ht-46 ham radio transmitter

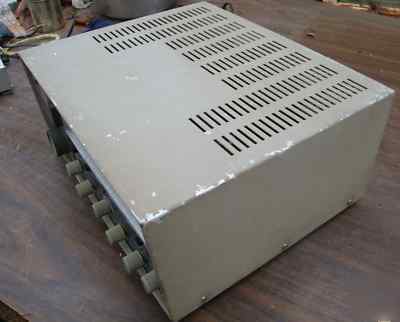

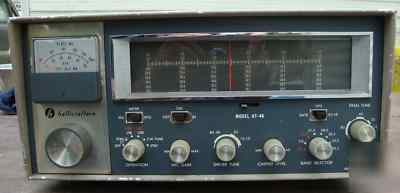

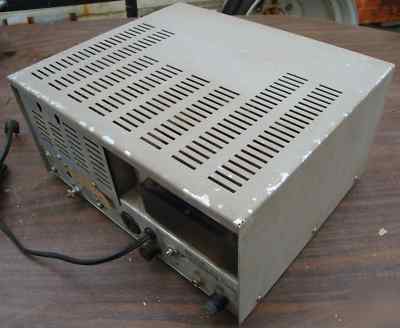

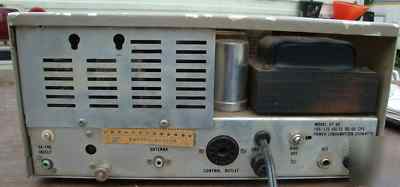

This is a Hallicrafters HT-46 transmitter estate item fair condition with some scratches not tested. covers 80,40,20,19 meters and four ten meter bands ,28 to 28.5 MHZ,28,5 to 29 MHZ,29 to 29.5 MHZ,and 29.5 t0 30 MHZ. Below are some specs from the internet.
HT-46 9 tube Transmitter/Exciter that was designed to be used with the SX-146 Communications Receiver, or as an Exciter for the HT-45, HT-33B, HT-41 or others. It utilizes nine tubes and will transmit SSB or CW on 80,40,20,15 and 10 meters(28.0-29.0), coverage of 29.0-30.0 would require the addition of two more crystals at a cost of about $7.50 each. It can be used as a "stand alone" unit or in combination with just about any other receiver. It has PTT, Amplified Automatic Level Control, Mechanical/Temperature Compensated VFO, Constant Tuning Rate on All Bands, Solid State Modulator with 9 Mhz, 6-Pole Crystal Lattice Filter for Optimum SSB Response, Large Meter for Easy Viewing, 70-100W PEP Output on All Bands, Mechanical Dial Calibrator, Keyed RF Carrier for CW Operation with Shaping Network in Keying Circuits and Illuminated Meter and Main Dial. Transmitter uses a 12BY7 driver and a 6HF5 power amplifier. Production Year 1965.
