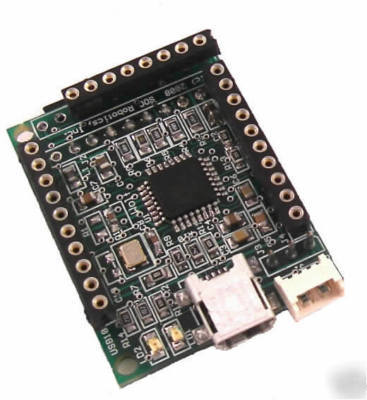

Mc-USB10 smart usb com for MC433/MC433G

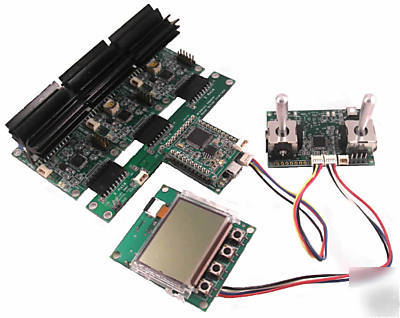

The MC433/MC433G Rev 0.97 Motor Control software respond to commands sent to them by the MC-USB10. The MC-USB10 is a USB peripheral that with suitable desktop software allows any I2C device to communicate with the desktop. The MC-USB10 comes with complete source code so custom applications can be created to control/monitor smart motion control devices. For example the MC5 Relay Adapter is a Smart Slave I2C device that responds to commands sent to it via the MC-USB10. All future SOC Robotics Motion Control Producst will have I2C communication functionality.
The MC-USB10 comes pre-loaded with an multipurpose application that implements a Serial Driver, ISP programming utility, I2C function and Step/Direction line control that communicates with stepper motor controllers - complete source code to the sample program is included. Free target USB example source code and desktop drivers can be downloaded from the Atmel web site. A free open source USB application suite called MyUSB is also available. New applications can be written in C using Windows IDE tools or GNU C tools and then burned into Flash. The latest AVR Studio from Atmel integrates the C GNU tools into the AVR Studio IDE for seemless Windows development. The pre-loaded application is written using the open source MyUSB code base.
For detailed technical information download the MC-USB10 Technical Reference Manual(.pdf):
USB10 Technical Reference Manual
16MHz on board crystal (16MHz optional)
TWI I2C Port (software implementation)
16K bytes Internal Program Flash (4K taken by boot loader)
512 bytes Internal EEPROM

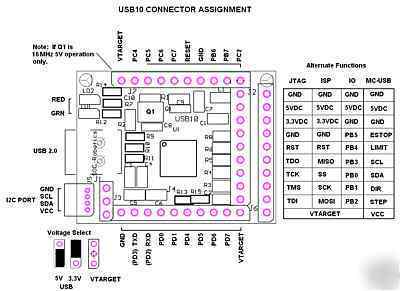

Machine pins on J4, J6, J7 to enable stacking
GNU C Compiler, Third Party Commercial C Compiler
Example application included for rapid application development
Extremely Small form factor (1.51x1.16 in)
3.3-5VDC @ 12ma Power input
This is a new unit direct from the manufacturer and includes warranty and technical support.
Note that the new V1.78 MC433 GStep software has I2C functionality built-in .
