Tool maker lathe or grinder parts, fixtures, accessorie

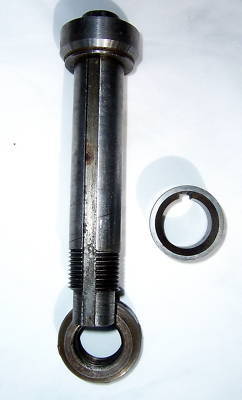

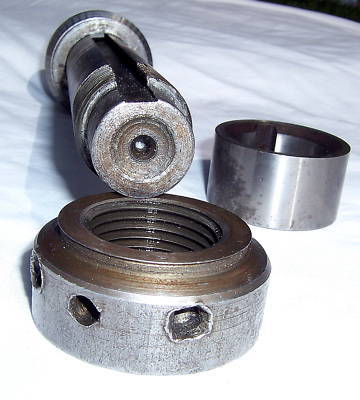

The large fixture is 3cm in diameter in the middle (the main part of the shaft) with an 8mm keyway. The collars are 5cm in diameter, one being anchored by 2 set screws while the other is threaded. The sleeve is 4.6cm in diameter with the same size keyway cut in it. At either end past the collars are smaller (2.6cm in diameter) and have a hole in the middle. Overall length is 12.8cm.

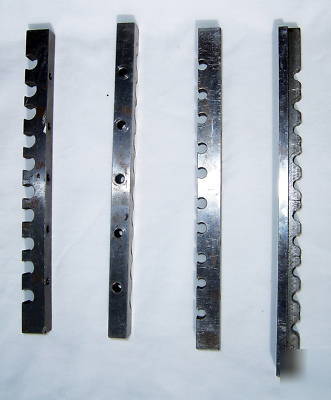

The dimensions of the Broach-like fixtures are as follows and all have 5 evenly spaced 5mm diameter holes:
1.5cm tall x 18.7cm long x 1.1cm wide
1.3cm tall x 18.7cm long x 1.1cm wide
1.3cm tall x 18.7cm long x 1.1cm wide with an 8x3mm notch cut in it
1.3cm tall x 19.9cm long x 1.1cm wide with a 7x3mm notch cut in it.
