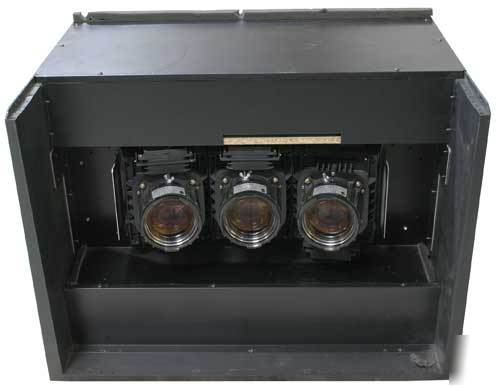

Toshiba P4130U video wall projection unit P4130-vu crt
Toshiba P4130U Video Wall Projection Unit P4130-VU CRT
Fresnel sheet (inner side), Lenticular sheet (outer side)
2.5mm (Option: 1.75mm and seamless)
2055 cd/m (600 ft-L) (white peak)
Horizontal: Min 150 degrees, Vertical: Min 60 degrees
Input and output: DIN 5-pin connector x 2
Selection of 6500K, 3200K and User position
846 (W) x 631 (H) x 1,110 (D) mm [33.3(W) x 24.8 (H) x43.7 (D) inch]
Control cable (DIN 5-pin cable), Power cable
Complies with governemnt regulations
Y signal ... 1 V (p-p) (75-ohm termination)
C signal ... 0.286V (p-p) (75-ohm termination)
Analog RGB signal ... 0.7V (p-p) (75-ohm termination)
H/C sync ... TTl level, negative, 10k-ohm
V sync ... TTl, negative, 10k-ohm
Composite sync ... 0.3V (p-p), (75-ohm)
RS-232C: D-sub 25-pin (female) x 1
Baud rate: 1.2k, 2.4k, 4.8k, 9.6k baud
