> 10 ton commercial package heat pump R22 day & night
10 ton commercial package heat pump R22 day & night
Model PDX4 - Heat Pump units are high-efficiency single-packaged electric cooling units that are pre-wired and pre-charged with environmentally sound (R-22) HFC refrigerant. The units are factory tested in the cooling mode. 3 phase 208/230 volt 13 seer.

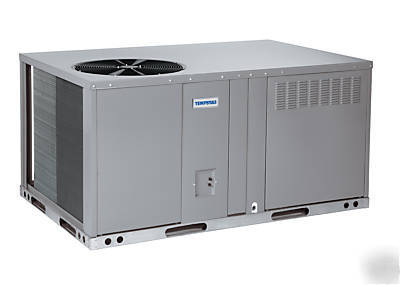

Adapter curbs(Roof Penetration) are available. Email questions and sizes. Picture shown is not actual unit.
ASHRAE 90.1-2004 compliant 13 SEER efficiency levels
Single-stage cooling capacity control on all 036-072 models and the 091,101 and 121 models.
Rated in accordance with ARI Standard 210 (036-060 sizes) and 360 (072-121 sizes)
Designed in accordance with Underwriters Laboratories Standard 1995
Listed by UL and UL, Canada
Single-stage cooling capacity control
Exclusive non-corrosive composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
Acutrol refrigerant metering system
Cooling operating range from 25 F up to 115 F using winter start kit, 40 Deg.F Std
Access panels with easy grip handles and no-strip screw feature
Two-inch disposable return air filters
Tool-less filter access door
Standard belt drive, constant torque motor
Advanced terminal board for simple safety circuit troubleshooting and control box arrangement
Convertible from vertical to horizontal airflow for slab mounting
Provisions for thru-the-bottom power entry capability
Single point electric connections
Full perimeter base rail with built-in rigging adapters and fork truck slots
Scroll compressors with internal line-break overload protection
Copper tube, aluminum fin coils
24-volt control circuit protected with resettable circuit breaker
Permanently lubricated evaporator-fan motor
Permanently lubricated, totally enclosed condenser-fan motors
Low pressure, freeze protection, and high-pressure switches
Liquid line filter drier standard
FACTORY INSTALLED OPTIONS INCLUDE BUT NOT LIMITED TO:
Economizer and two position damper options
Disconnect and convenience outlet options
Multiple optional motor and pulley combinations
Corrosion resistant options for evaporator and condenser coils
