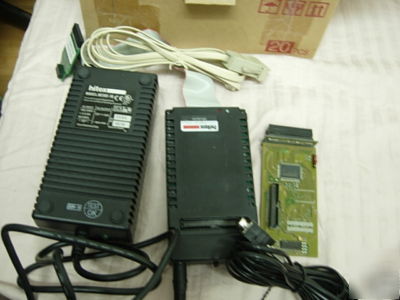

> Hitex dprobehs high-speed 8051 in-circuit emulator
Hitex dprobehs high-speed 8051 in-circuit emulator
Get Real ... with Real-Time Software
Don t venture out into the world of serious 8051 software
development alone. Arming yourself with the DProbeHS and its add-on
modules will help you complete your project on time while ensuring a
high standard of quality. The DProbeHS is a low priced entry-level incircuit
emulator to which greater levels of debugging and development
functionality can be added in the form of extension modules. Adding
DTrace16 introduces real-time trace capability to the system. Alternatively,
adding one of the DBox16 options will result in a powerful full-featured
in-circuit emulator. These moderately priced modules can dramatically
decrease the time to market of real-time software while ensuring a failsafe
quality of the highest standard. Furthermore, the extensions can be
Enter ... the World of Real-Time
In-Circuit Emulation with DProbeHS
emulator that focuses on high-speed 8051 variations. Complete HLL
debugging and rapid access to all in-circuit emulator resources is
achieved with the easy to use HiTOP debug interface. You ll find that
microcontroller on-board peripherals are fully supported.
Should you want to watch and modify values during a running
emulation without influencing real-time operation, the dual-ported
emulation memory allows for this. Other features include the support of
interrupts during a halted emulation, hardware breakpoints for code and
data, code banking and the support of watchdog timers. Due to its
compact size, the DProbeHS can be placed in close proximity to the target
hardware, allowing emulation at high clock frequencies. In addition,
setting up the emulation processor is easy and straightforward.
Despite being packed with features, the DProbeHS is lightweight
used not only with the DProbeHS, but also with other DProbe types and
therefore other processor architectures.
To arm your entire development team with emulator capability, you
typically have some full-featured in-circuit emulators (i.e. DProbe with a
DBox16) for the testing and debugging of quality or mission critical
software. In addition they could have a few DProbe units at their disposal,
so that several developers are free to perform their own emulations.
HiTOP The Ultimate User Interface for
HiTOP is the Windows based universal user interface for all Hitex
development tools. It provides complete HLL debugging and rapid access
to all in-circuit emulator resources such as Trace, Trigger, Sequencer,
Performance Analysis, Coverage, Memory mapping and Setup of the
As well as being packed with useful features, HiTOP can read object
files in almost any format and it makes efficient use of any debug
A powerful command language included can be used to record and
replay user actions. This language facilitates automatic testing of
applications and remote control of the userinterface.
Kernel awareness for most RTOSs can
be added to HiTOP and it s possible to
integrate it with a great deal of our partner
products, including visual design and test
tools, analyzers, editors, etc.
Supported controllers: High-speed 8051 derivatives like the 60 MHz TS8xC52X2 from
Atmel Wireless & Microcontrollers (former Temic Semiconductors)
Real-time emulation: Up to 70 MHz
Target voltages: From 2.7 to 5.5 V
Peripheral support: Full support of microcontroller on board peripherals
Memory: Up to 1 MB dual-port overlay memory enables non-intrusive performance.
On the fly access to variables is supported. Shadow RAM included
Banking: Code banking up to 16 MB. Various banking models supported
Breakpoints: 1 M hardware breakpoints for code,
64 K hardware breakpoints for data read / write
Trace possibility: Using DTrace16 or DBox16
HLL-debugger: HiTOP. Supports compilers from Keil, Tasking and IAR.
Uses HiSCRIPT, the powerful macro language
Adaptation to target: Various options available
Communication: Serial communication up to 115 kBaud
Power supply: Universal input voltage for worldwide application
