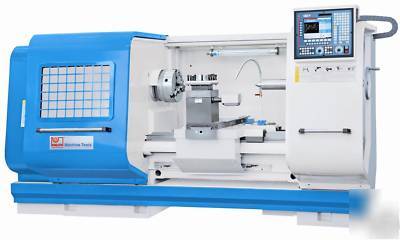

Knuth cnc lathe proton xl 35"X120"
this machine is equipped with a Fagor 8055 TC Cycle
Control for quick and easy operator programming
this machine was constructed and designed with state-ofthe-
art manufacturing technology using only the best materials
longitudinal and cross travel run on preloaded ball screws
using high-precision bearings to ensure maximum accuracy
distance between centers 120
constant surface foot per minute cutting speed
9 inch monitor, graphic user interface
repeatability 0.0002, positioning accuracy 0.0004
X axis and Z axis are equipped with preloaded ball screws
headstock gears are made of hardened chromium-nickel steel
including TURCITE-B coated bed ways to ensure wear-free
turning diameter over bed 35.4
turning diam. over cross slide 24
shaft diameter 1-1/4 x 1-1/4
speeds high, 2 steps H1: 387-860 rpm
speeds low, 2 steps L1: 54-118 rpm
overall dimensions 216 x 88 x 88
