> Opto 22 parallel addressable multiplexer pamux ii
Opto 22 parallel addressable multiplexer pamux ii

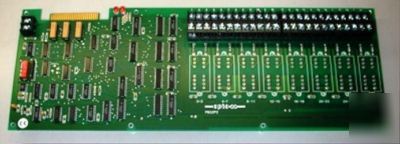

Opto 22 Parallel Addressable Multiplexer PAMUX II PN: PN32P3 BRAND NEW!!
PAMUX II is a Parallel Addressable Multiplexer which operates under the control of a host computer. Connection to the computer is via the 50-conductor ribbon cable. Up to 16 PAMUX II boards can be daisy-chained from one ribbon cable. Each PAMUX II board accommodates 8 Quad Pak I/O Modules. Modules can be selected for AC output, AC input, DC input or DC output. AC output signals can be 12 to 280 volts. AC input signals can be 24, 120, 0r 240 volts. DC output signals can be 5 to 200 volts. DC input signals can be 5, 12, 24, 125, or 250 volts. The Quad Pak modules are plug-in and position independent. An industrial barrier strip provides connection between the I/O module and the external wiring. And edge connector is used to attach the 50-conductor ribbon cable to the board.
* Relative Humidity: 0 to 95%, non-condensing
