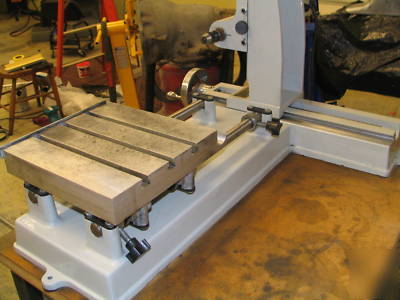

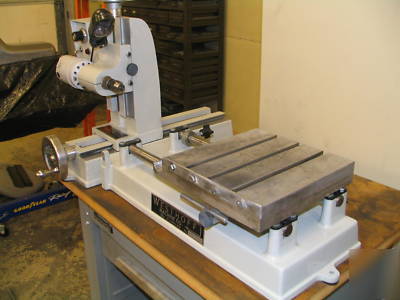

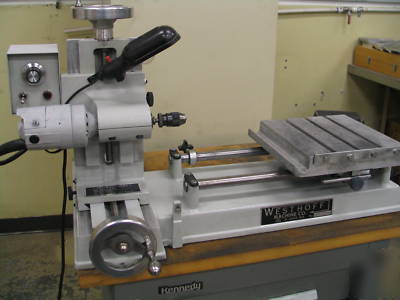

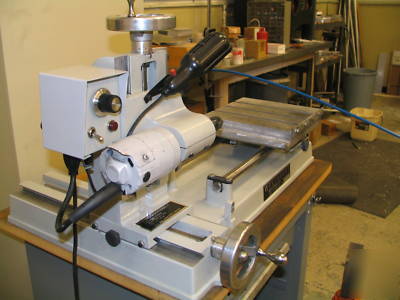

Westhoff ultra precision drilling machine
* No special skill is needed to operatethe drilling machine.
* It comes assembled ready for work, with the precision in the machine. It responds within micro limits merely with sight adjustment of controls.
* The precision is so remarkable that several owners have reported drilling .010 and .015 holes to depth of 6 to 8 inches.
* The work tables ball bearing movement on the two round ways has so little friction that fingertip pressure is all that is necessary for load weights up to 30lbs.
Ways.............................60 R Case hardened and precision ground
Lead Screws...................Stainless steel with 10 pitch Acme thread
Dials.............................Aluminum anodized, friction setting graduated by .001
Rheostat.........................Rheostat (solid state) speed, 0 to 15,000 R.P.M.
Motor............................1/10 Hp. 115v.
Chuck............................Albrecht Keyless 0-1/8" capacity with through hole 3/32" x 6" deep
Lead Nut.......................Wear resistant, self lubricating nylatron
Wear Pads.....................Wear resistant, self lubricating nylatron
Gibs..............................Wear resistant, self lubricating nylatron
Base, Column, Head, Work table...Cast aluminum for light weight and durability
base and table are ribbed constructed for added strength
Overall Size.....................18"H x 24"W x 26"L
Weight............................50 lbs.
Head Travel.....................4-1/2" vertical
Horizontal Travel.............12"
Work Table.....................8-1/2" x 8-1/2" with work table travel 8-1/2"
Bearings.........................Linear ball bushings for ease of linear motion
