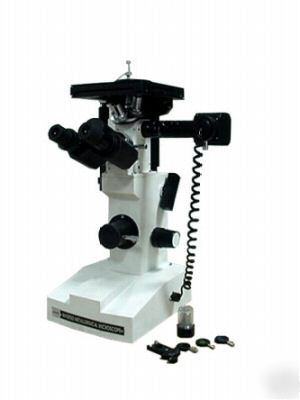

1500X research metallurgical metal testing microscope
Grain Size Eyepiece, Micrometer Eyepiece, CCD camera adapter, Micrometer stage worth $ 250 FREE
Siedentopf Binocular observation head with adjustable eye piece separation.
Inverted microscope stand, complete with built-in transformer, calibrated light intensity control, socket and fuse holder
Graduated mechanical stage, 150x160mm in size, offers 30x30mm cross section motion reading to 0.1mm by vernier. Provided with low coaxial controls.
Built-in rotatable analyser and lamp polariser filters are provided for dark field illumination.
M5x (N.A.0.12), M10x(N.A.0.25), M20x(N.A.0.40) and M40x(N.A.0.65). M100xoil
50X-400X for visual observation, 20X-165X for 35mm photography and 50X-400X for polaroid photography.
Built-in optical path selector (flip-in type) and built-in deviating mirror to direct light to camera. 4X photo-tube for 35mm camera is included
Stage clip, 3 stage insert plates (opening 15, 25 and graduated 25 phi-mm), green and blue filters, bulb cord, line cord & spare bulbs.
