> Allen-bradley compactblock ldx plc 1790-0B16X digital
Allen-bradley compactblock ldx plc 1790-0B16X digital

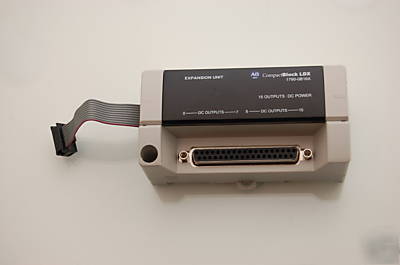

Allen-Bradley CompactBlock LDX Digital Output Expansion Block (1790-0B16X)
The CompactBlock LDX I/O system offers a compact, cost-effective, and diverse distributed I/O solution for automation solutions. Offering 24V DC , 120V AC , relay, analog, and temperature modules, CompactBlock LDX I/O supports a wide breadth of field devices and is compatible on both DeviceNet and PROFIBUS DP networks. CompactBlock LDX I/O is especially suitable where low cost and confined space are coupled with less-stringent IP20 environmental requirements.
* Compact design of hardware lets it fit into shallow enclosures and confined areas.
* Node address switches and autobaud rate detection ease network commissioning.
* Cyclic and change-of-state DeviceNet capability improve throughput.
* A maximum of 80 (64 for PROFIBUS DP) digital I/O per node.
* Choice of D-shell connector for convenient disconnection or fixed screw terminals for I/O connections.
* Universal sink/source inputs reduce the number of components to stock and allow flexibility of input types.
CompactBlock LDX I/O offers the leading, lowest-cost, device-level communication network, the DeviceNet network, to translate simple messages from the controller to the plant floor.
* By using modular EDS files, it is easy to connect and configure CompactBlock LDX I/O.
* Cyclic and change-of-state messaging increase network throughput, thus helping to increase productivity.
* ODVA conformance improves the level of interoperability with other DeviceNet products.
* CompactBlock LDX I/O for the DeviceNet network works with any available DeviceNet scanner.
Digital Output Expansion Block
* Add I/O expansion blocks to a base block, providing up to 80 (or 64 for PROFIBUS DP) I/O points per assembly.
* Expansion blocks cannot be used alone; they must be connected to a base block.
* Compatible with all base blocks except for the thermocouple and RTD base blocks, which do not support expansion blocks.
* 7-cm ribbon cable connector included; optional 15-cm ribbon cable available.
* D-shell or screw-clamp I/O connectors.
Voltage, On-State Output, Nom.
Voltage, On-State Input, Range
0.5 A max. per output, 4.0 A max. per common
16-point Base Blocks, DeviceNet
52 x 104 x 42 mm (2.03 x 4.07 x 1.64 in)
