New 25FT andrew FSJ4 coaxial jumper-pnm & pkr connector

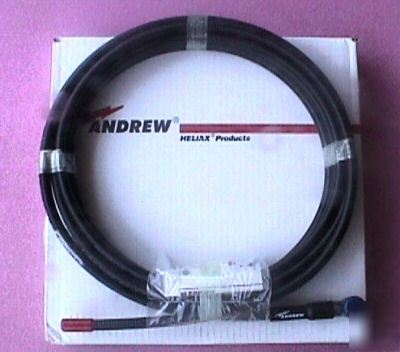

NEW 25 FOOT ANDREW HELIAX SUREFLEX OUTDOOR F4A COAXIAL CABLE JUMPER WITH FACTORY TERMINATED PKR (PLATED 4.1-9.5 DIN MALE ANGLED CONNECTOR) AND UNTERMINATED N MALE STRAIGHT CONNECTOR (PNM)
Connectors: 1 terminated PKR-C (plated 4.1-9.5 DIN Male Right Angled) and 1 PNMV2-C (plated N Male straight) included, but not attached
* Interface 1: 4.1-9.5 Small DIN Male Angled, plated
* Interface 2: N Male Straight - F4PNMV2-C included, not attached
* Connectors are appropriate for outdoor use
* Operating Frequency Band: 0 12000 MHz
* Average Power: 0.6 kW @ 900 MHZ
* Outer Contact Resistance, max: 0.30 m
* Inner Contact Resistance, max: 2.00 m Ohm
* RF Operating Voltage, max (rms): 707.00 V
