Cincinnati right angle rotary tool attachment cnc

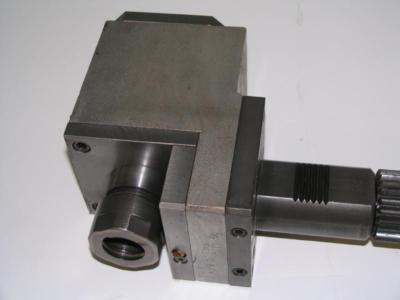

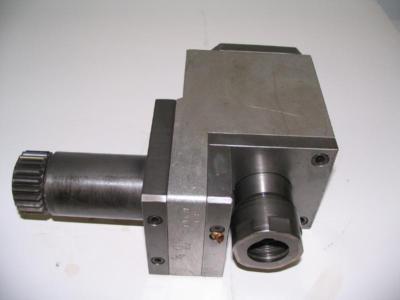

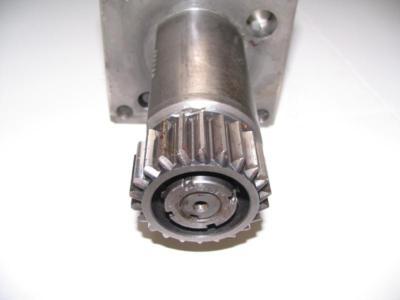

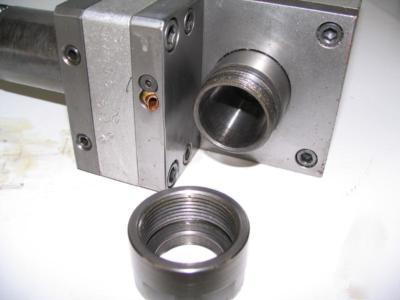

For Sale is a used 90 Degree Rotary Tool Attachment for A Cincinnati Milacron Mill / Drill Lathe
It mounts in VDI Rotary Tool Turrets
This Right Angle Rotary Tool Attachment is for the following machines :
Cincinnati Milacron AT, 1210, 1212 Cinturn Lathe with the Rotary Tool Option
The machine would also have either have a Contouring or Positioning Spindle
The Machine Serial Number prefix on this series of machines is 5320
Cincinnati Milacron AE, 1410, 1412 Cinturn Lathe with the Rotary Tool Option
The Machine Serial Number prefix on this series of machines was 5340
The gearbox has a 50% speed reduction ratio between the input and the output.
The gearbox also reverses the direction of the output shaft relative to the input
This tool was removed from a working machine that was recently taken out
of production. The shafts turn freely
