New * sealed* allen bradley 1769-IF4 /b 1769-1F4 1769IF4
Rockwell Automation > PLC & HMI > Controllers > SoftLogix > 1769-IF4/B
Allen Bradley 1769-IF4 CompactLogix 4 Channnel Analog Current/Voltage Input Module, Series B
Number of Inputs: 4 differential or single-ended; Analog Normal Operating Ranges: Voltage: 10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc, Current: 0 to 20 mA, 4 to 20 mA; Full Scale Analog Ranges: Voltage: 10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc, Current: 0 to 21 mA, 3.2 to 21 mA; Resolution: 14 bits (unipolar), 14 bits plus sign (bipolar)
The Allen Bradley 1769-IF4 module converts and digitally stores analog data for retrieval by controllers, such as CompactLogix or MicroLogix 1500. The module allows connections from any combination of up to four voltage or current analog sensors, the high-impedance input channels can be wired as single-ended or differential inputs. The module supports the following data types: engineering units, scaled-for-PID, percent or raw/proportional data.

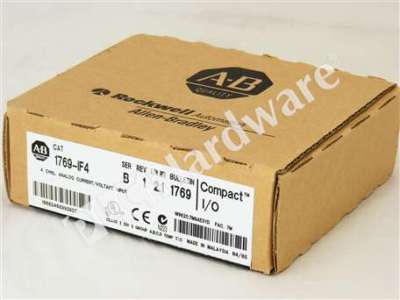

One New Factory Sealed Allen Bradley 1769-IF4 Series B, CompactLogix 4 Channnel Analog Current/Voltage Input Module.
The unit is Series B, Rev. 1, F/W Rev. 2.1, Pkg Date 04/05.
