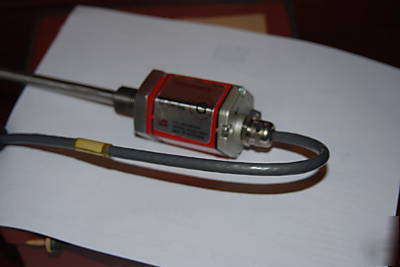

New temposonics g series GHS0060URB12V2, 6" stroke
G series, (rod length = 9.5") usable stroke = 6", 1 ft cord NEW
* The G-Series rod-style (model GH) sensor offers modular construction, flexible mounting configurations, and easy installation. It is designed for internal mounting in applications where high pressure conditions exist, (5000 psi continuous, 10,000 psi spike), such as hydraulic cylinders. The Model GH sensor may also be mounted externally in many applications.
* Sensor Model: Model GH rod-style sensor only (magnet must be ordered separately).
* Housing Style: US customary threads, flat-faced flange and pressure tube, standard.
* Stroke Length: 14.5" (Encode in 0.1" increments).
* Connection Type: Integral connector, 6-pin DIN (M16), male, standard.
* Input Voltage: +9 to +28.8 VDC
* Output: Digital pulse, Start/Stop output wired for square wave neuter, ( + Stop used for neuter output pulse).
* Operating temperature: -40 C (-40 F) to 80 C (176 F)
* EMC test: Emissions IEC/EN 61000-6-3, Immunity IEC/EN 61000-6-2, IEC/EN 61000-4-2/3/4/5/6/8, level 3/4 criterium A, CE qualified.
* Shock rating: 100 g (single hit)/IEC standard 68-2-27 (survivability).
* Vibration rating: 15 g, (30 g with HVR option) / 10-2000 Hz / IEC standard 68-2-6.
* Adjustability: Field adjustable Null and Span.
* Update time: Analog: < 1 ms (typical).
* Diagnostic display (LED s located beside connector/cable exit).
* Sensor rod: 304L Stainless steel.
* Operating pressure: 350 bar static, 690 bar spike (5000 psi static, 10,000 psi spike).
* Mounting: Threaded flange 3/4-16 UNF-3A.
* Typical mounting torque: 45 N-m (33 ft. - lbs.).
Magnet type: Ring magnet, open-ring magnet or magnet float (not included).
