> Pic microchip pic-P18 prototype board with components
Pic microchip pic-P18 prototype board with components

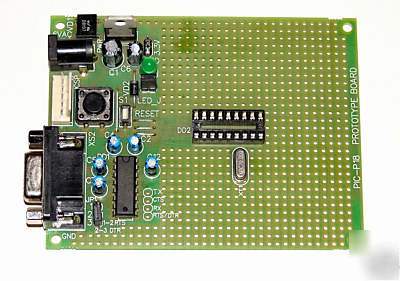

PIC Microchip PIC-P18 prototype board with soldered components
With this board you can develop and prototype with any of Microchip's 18 pin PIC microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware. The board have User button and status LED. The bridge rectifire allow this board to be powered with both AC and DC power supply adapters. PIC-P18 supports both 3.3V low power and normal 5V operation.
* ICSP/ICD connector for programming/debugging with ICD2, EXTRA-PIC, PIC JDM, PICkit2Press for view in high resolution
* RS232 Tx, Rx interface with MAX232 IC on socket
* DIL18 microcontroller socket
* selectable +3.3V / +5V power supply voltage regulator
* GND busPress for view in high resolution
* Four mounting holes 3.1 mm (0,13")
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
* Dimensions 100x80 mm (3,9x3,15")
* PIC-P18 components placement
* Blink LED for PIC16F628 demo code (C source and HEX)
* Button read for PIC16F628 demo code (C source and HEX)
* RS232 read/write for PIC16F628 demo code (C source and HEX)
