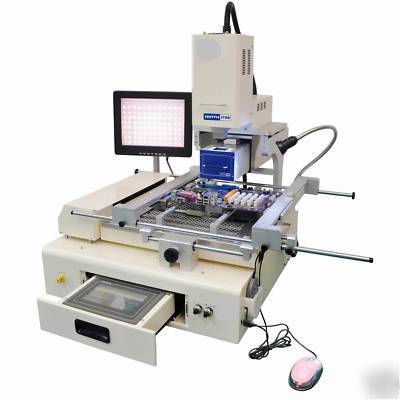

Semi-auto bga reworks station for laptop, xbox 360&PS3
Semi-auto BGA Reworks Station for laptop, xbox 360&PS3
PCB dimension:W20*D20~W550*500
Working table adjustment:: 120mm Forward/backward, 80mm Left/right
Temperature control: K-type Thermocouple:Close Close Cycle Controlled
Area heater: Far infrared: 3600W
Power supply: Single-phase 220v,50/60Hz
Machine dimension: L850*W750*H630
Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the auto soldering and mounting function;
Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen;
Upper heater is movable, convenient for operation;
Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550*500mm;
Powerful cross flow fans cool the bottom heating area rapidly with stable speed;
Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 22 X optical focus, able to rework BGA si-zed up to 70*70mm;
Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles;
Built-in vacuum pump, 60 rotation in angle, mounting nozzle is micro-adjustable;
8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unli- mited in the industrial computer;
Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range of 30-50g;
Equipped with different hot air nozzles, easy to replace and able to locate in any angle.
