Tektronix TDS420A 4CH 200MHZ digital oscilloscope
Up for sale is one USED Tektronix TDS 420A Digital oscilloscope.
4 channels, 200MHz bandwidth and 100MS/s

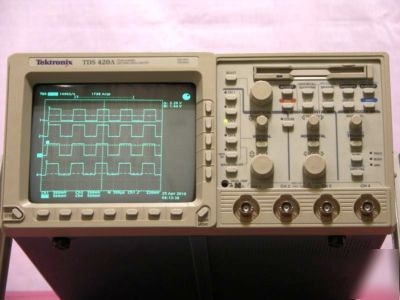

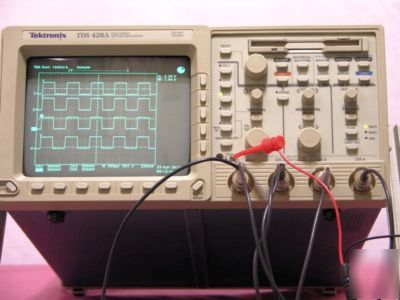

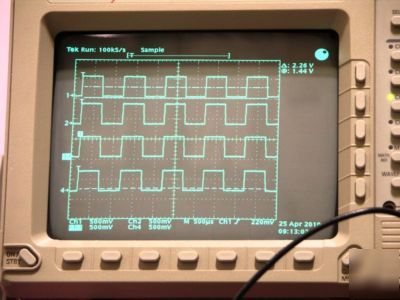

Shown displaying probe test signal
Includes power cord and Reference book and performance book. No probes are included!!
SOLD ASIS NO WARRANTY NO RETURN!!!
Tektronix TDS420A - Oscilloscope 200MHz 4Ch 100MSa/s
The Tektronix TDS 420A is a Digitizing Oscilloscopes with 4 Channels and a bandwidth of 200 MHz.
Portable and easy to use the TDS420A personal lab scopes are exellent for simple to complex
applications, which include electro-mechanical research and analysis, power electronics/power
supply design, bio-physical research and analysis, and digital and analog design. It has the standard
video trigger capability, which makes the scopes good instruments for measuring video signals and
200 MHz Bandwidth and 1.5% Accuracy
Capture Transient Events to the Full Scope Bandwidth with Its 100 MS/s Sample Rate
Record Lengths to 120 K (Opt. XL)
Speed Up Your Circuit Analysis with 25 Built-in Automatic Measurements and Extended Waveform Math/FFT (Opt. XL)
Roll Mode Allows You to See Acquired Data Points Without Waiting for the Acquisition of the Complete Waveform
Use the Video Trigger Mode to See NTSC, PAL, SECAM Signals or Your Own Custom Video Signals
Capture Those Glitches with the 10 ns Peak Detect Mode
