24" swg 72" cc leblond regal engine lathe, 3-jaw, stead
24" Swg 72" cc LeBlond REGAL ENGINE LATHE, 3-Jaw, Stead
24" Swing 72" Centers LeBlond REGAL ENGINE LATHE, 3-Jaw, Steady, Aloris Toolpost, 7.5 HP,Newall DRO,

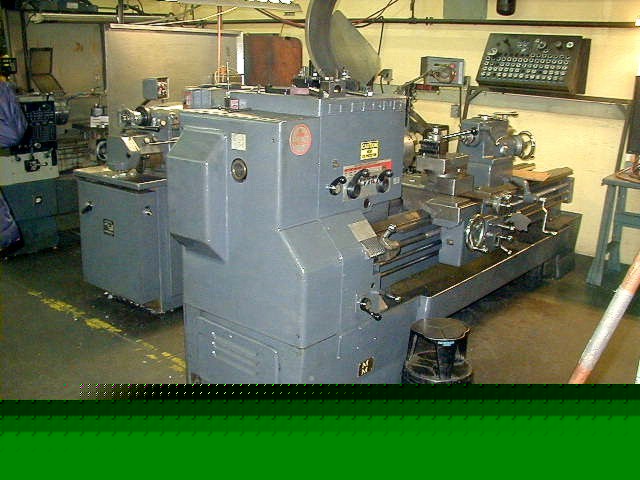

24" x 72" LEBLOND REGAL ENGINE LATHE
MODEL: 24" REGAL, S/N: 3H-609, NEW: 1964
SWING OVER BED .................... 26"
SWING OVER CROSS SLIDE ............ 18-1/4"
DISTANCE BETWEEN CENTERS .......... 72"
WIDTH OF BED ...................... 17"
SPINDLE NOSE ...................... L-2
HOLE THRU SPINDLE ................. 2-3/16"
SPINDLE SPEED RANGE (12) .......... 18 - 720 RPM
LONGITUDINAL FEED RANGE (48) ...... .0036" - .205" IPR
TAILSTOCK SPINDLE TRAVEL .......... 7"
TAILSTOCK SPINDLE TAPER ........... #5 MT
APPROX WEIGHT ..................... 6,500 LBS
APPROX DIMENSIONS ................. 144"L x 50"W x 55"H
- NEWALL TWO AXIS DIGITAL READOUT
- ALORIS MODEL: CA TOOLPOST WITH MISCELENEOUS HOLDERS
- HEAVY DUTY TWO SPEED FOR TAILSTOCK
- 7.5 HORSE POWER MAIN MOTOR WITH CONTROLS
