Keithley 224 programmable current source gpib/ieee-488

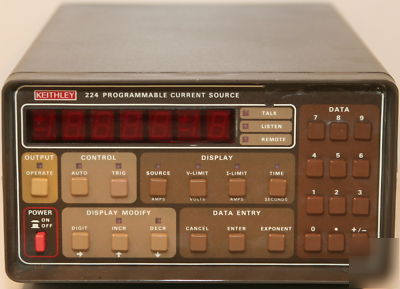

Keithley 224 Programmable Current Source - GPIB/IEEE-488
Keithley 224 Programmable Current Source Specifications:
* Display: 0.5 in LED digits, 4 -digit signed mantissa, 1-digit signed exponent
* Maximum Allowable Common Mode Voltage (Output or Output Common to Chassis): 250 V rms, DC to 60 Hz
* Increment/Decrement: automatic, manual or trigger modes
* Range of Dwell Times: 50 ms to 999.9 s
* Output Load: Output load must be non-inductive
* External Trigger: TTL-compatible External Trigger Input and Output
* All connections on rear panel
* Output Connections: Teflon insulated 2-lug triax connector (specialty connector 30JR121-1) for output; five way binding posts for GUARD, OUTPUT COMMON and CHASSIS GROUND; BNC (chassis isolated) connectors for EXTERNAL TRIGGER INPUT and OUTPUT
