New honeywell micro switch DTE6-2RN snap switch

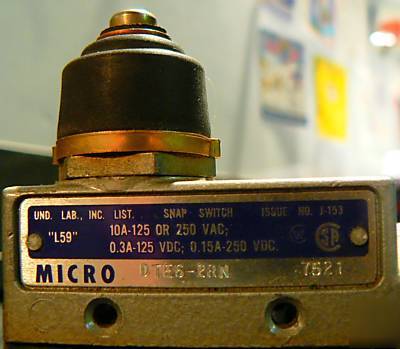

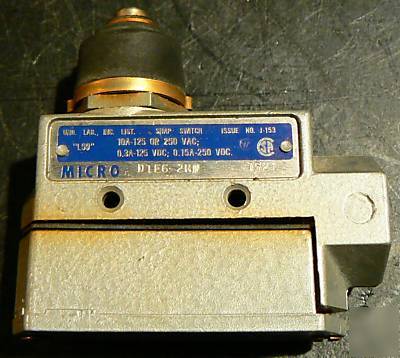

HONEYWELL MICRO SWITCH DTE6-2RN SNAP SWITCH NEW.
0.3 AMP 125 VDC, 0.15 AMP 250 VDC
* Operating Force (O.F.): 6,95 N to 16,4 N [25 oz to 59 oz]
* Release Force (R.F.): 1,67 N min. [6 oz min.]
* Pretravel (P.T.): 2,8 mm max. [0.110 in max.]
* Overtravel (O.T.): 3,18 mm min. [0.125 in min.]
* Differential Travel (D.T.): 1,52 mm min. [0.060 in min.]
* Circuitry: 2NC 2NO DPDT Snap Action
* Ampere Rating: 10 A Ind./0.3 A Res./0.15 A Res.
* Supply Voltage: 125 Vac, 250 Vac/125 Vdc/250 Vdc
* Housing Material: Zinc Die-Cast
* Termination Type: 0.5 in - 14NPT conduit
* Housing Type: Split Housing, Side Mount
* Sealing: NEMA 1, 3, 4 /IP66
* Approvals: UL recognized, CSA certified
* Operating Temperature Range: -32 C to 71 C [-25 F to 160 F]
* UNSPSC Commodity: 302119 Switches and controls and relays
