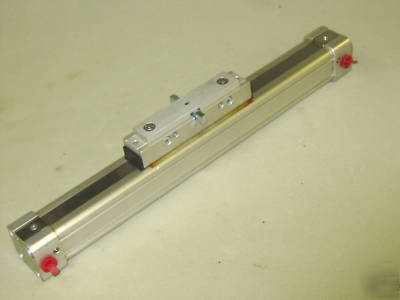

Rodless air cylinder. 33MM bore x 6" stroke
ORIGA / PHD, ORIGA #72306-049, PHD #SGCM33X6-CB-H39-H4
PORTS, 1/8, CAN BE PLUMBED ON THE SIDES OR BOTTOM
CYLINDER IS 14" OVER ALL LENGTH

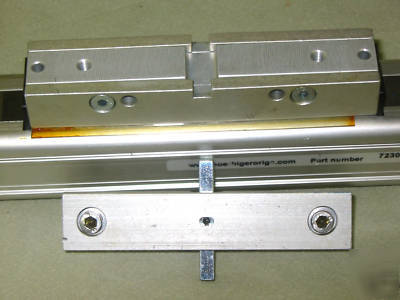

FROM THE BOTTOM TO THE TOP OF THE MOUNTING PAD IT IS 2 3/16", THIS IS NOT COUNTING THE CROSS DRIVE PLATE ON THE SLIDE
MOUNTING PAD ON THE IS 1" X 4 3/4" WITH 2 - 10-32 HOLES
