Dpdt / dpco toggle switch pcb mount, farnell 143-7746

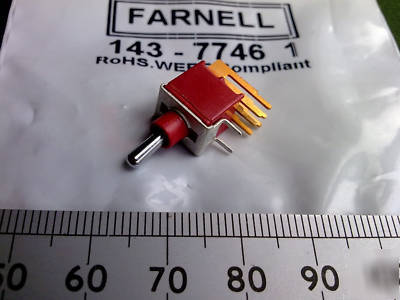

DPDT / DPCO Toggle Switch Right Angle PCB Mount, Farnell 143-7746, C & K - ET21MD1ABE
This is one item of the above switch. These are new and still in the bags from the supplier. Here is a link to the Farnell webpage where they are on sale for 10.27+VAT
http://uk.farnell.com/c-k/21md1abe/switch-dpdt-r-a-pcb-on-on/dp/1437746?Ntt=143-7746
You can see some bigger pictures here:
http://homepage.ntlworld.com/henry01/for_sale/switch_143_7746_front.jpg
http://homepage.ntlworld.com/henry01/for_sale/switch_143_7746_bottom.jpg
Description from the catalogue:
* SWITCH, DPDT, R/A, PCB, ON-ON
* Switch Function Type:On-On
* Contact Configuration:DPDT
* Max Contact Voltage AC:20V ac
* Max Contact Voltage DC:20V dc
* Tab Blade Thickness:0.51mm
* Contact Material:Copper Alloy
* Contact Plating:Gold over Nickel
* Dielectric Strength, VDC:1000V
* External Length / Height:10.29mm
* Flammability Rating:UL 94V-0
* Insulation Resistance:1000Mohm
* Material:Glass Filled Nylon
* Max Contact Resistance:20mohm
* Min Temperature Operating:-30 C
* Mounting Type:Horizontal Actuation
* No. of Electrical Operations:30000
* No. of Mechanical Operations:30000
* Termination Method:PCB Through Hole
Please check out my other items, and Thanks for looking.
