Tektronix 11802 digital sampling oscilloscope w/modules

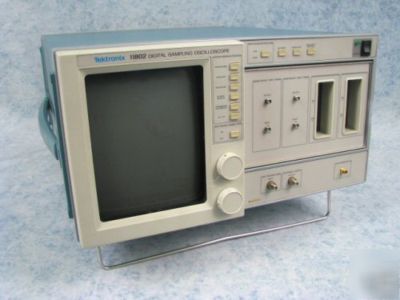

Tektronix 11802 Digital Sampling Oscilloscope w/Modules Used
Model/Part No:11802 Our Item ID: 3170
Sold as pictured. Selling for parts only.D2
Built-in delay lines allow internal triggering and viewing of the leading edge of the trigger event. Virtually all of the operation of the 11802 is accomplished through the touch-screen and two knobs located at the lower right of the screen. Autoset provides immediate display of an applied signal, correctly scaled and triggered.
For those application where four channels are sufficient, the 11802 offers a built-in, dual compensated, delay line with trigger pickoff. The delay line allows you to pick off a trigger from the input signal and provides up to 5ns of pretrigger viewing. This is especially useful in applications involving low repetition rate signals, where it may be impractical to trigger on one event and look at the next repetition of that event.
8 bits full screen (80 V LSB at 2 mv/div deflection factor)
2 to 255 mV/div in 1 mV/div increments
1 ps/div to 5 mV/div settable to 1-2-5 sequence or in 1ps increments
512, 1024, 2048, 4096, 5120 samples
Item Tested?: Not TestedPhysical Condition: Good; Working Condition: Not Fully Test, but Powers Up55 | 28x 22x14 | 1
