Willem eprom programmer eprom flash ecu pic atmel fwh

FREE !! SMD 24Cxx, 93Cxx Adapter.
FREE !! TSOP32 (14 mm,20 mm) to DIP32 Adapte.
FREE !! TSOP28 (14 mm)to DIP28 Adapter.

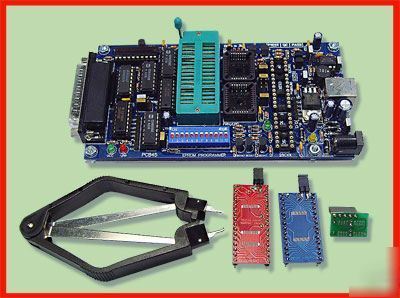

Advanced Willem EPROM Programmer PCB5.0 ( NEWEST!! IMPROVE PCB)
* This is the newest Willem EPROM Progrmmaer from the original producer/developer of Willem EPROM Programmer version: PCB3b, PCB3.5, PCB4C and PCB4.5C and software versions: 0.98D5 , 0.98D8 , 0.98D2, 0.97ja, 0.97j, 0.97i+, 0.98i or (0.97i), 0.97h and 0.97g.
* This new hardware version (PCB50) is more STABLE than version PCB4.5C and add supports 3V3-3V6 SPI Flash devices.* SPI flash chips are found on new motherboards, DVD burners, hard drives etc. It isn't new designed PCB in order to avoid copyright PCB4C and PCB4.5C. These PCBs are our copyright.
* Because the hardware Willem EPROM Programmer other version such as : PCB4.5C, PCB3.5 , PCB5.0C (New disign PCB / Newest Dual Power) It can't able support the SPI FLASH VCC(3.6V) chips .
* Updated Software Willem EPEOM PCB45-1(0.98D9) supports MORE chips (SPI FLASH , EPROM, EEPROM, FLASH, I2C,PIC, MCS-51,AVR, 93Cxx, ISP) and more.
* Software Willem EPEOM PCB45-1(0.98D9) can program up to 50% faster than software 0.98D8 support only a board Willem EPROM Programmer old version.
Advanced Willem EPROM Programmer PCB5.0
* Refreshing , Upgrading, Programming BIOS chips.
* Copier, Fax machine, Printer main board maintaining or repairing.
* Car memory device code reading, writing.
* VCD, DVD, Color TV maintaining or repairing.
* Neon Light Controller code writing.
* MCU development - programming for MCS-51 series, AVR series and PIC series MCU.
* Repairing, reading, writing, programming PC motherboard BIOS Chips.
* Upgrade the chip in your cars computer.
* Programming MicroChip PIC Micros.
* Programming ATMEL AVR Micros.
Hardware & Software Features :
* The newest Willem EPROM PProgrammer PCB5.0 . It can program up to 20% - 50% faster than old version of Willem EPROM Programmer
* Built-in PLCC32 and PLCC Firmware HUB/LPC on-board
- SPI FLASH chips VCC(3.6V)
- EPROM, EEPROM, Serial (I2C) EEPROM, Microwire EEPROM, Microchip PIC
- FLASH Burner (Vpp 12.5V,21V,25V), Serial Peripheral Interface (SPI)
- Micro controllers MCS-51, MCS-48
- Test nonvolatile SRAM, static RAM, ATMELand etc.
* This Willem EPROM PProgrammer PCB5.0 and PCB4.5C can support the chip 29/39/49LVxxx (Low Voltage 3.3V).
* Uses the power supply from the USB Port or AC/DC adaptor power
* Note: Higher Vcc voltages (5.6v and 6.2v) will be available when an external AC power supply is used.
* able unprotect the AM29F040B flash memory chip.
* The back of circuit board is covered by a sheet of perspex and completely protected from a short circuit.
* Supports Win9X, Me, XP, NT, 2000 and VISTA operating systems
* Updated software Willem EPEOM PCB45-1(0.98D9) **Alpha test**
W25X010 , W25X020 , W25X040 , W25X080 , W25X16 , W25X32 , W25X64
MX25L512 , MX25L1005 , MX25L2005 , MX25L4005A , MX25L8005A , MX25L1605 , MX25L3205 , MX25L6405
EN25B05 , EN25B10 , EN25B20 , EN25B40 , EN25B80 , EN25B16 , EN25B32 , EN25B64
EN25P05 , EN25P10 , EN25P20 , EN25P40 , EN25BP80 , EN25P16 , EN25P32 , EN25P64
EN25D80 , EN25D16 , EN25F20 , EN25F40 , EN25F80 , EN25F16
A25L05P-B , A25L10P-B , A25L20P-B , A25L05P-T , A25L10P-T , A25L20P-T , A25L512
A25L010 , A25L020 , A25L040 , A25L080 , A25L016 , A25L032
Pm25LV512 , Pm25LV010 , Pm25LV020 , Pm25LV040 , Pm25LV080 , Pm25LV016
M25P05 , M25P10 , M25P20 , M25P40 , M25P80 , M25P16 , M25P32 , M25P64 , M25PE10 , M25PE20 , M25PE40 , M25PE80 , M25PX80 , M25PX16 , M25PX32 , M25PX64
S25FL004A/040A , S25FL008A , S25FL040A-T , S25FL040A-B , S25FL016A , S25FL032A , S25FL064A
AT25DF021 , AT25DF041A , AT25DF081 , AT25DF081A , AT25DF161 , AT25DF321A , AT25DF641 , AT26DF041 , AT26DF161A , AT26DF321
* Can be expanded by adding various adapters (Optional)
- PIC + adapter, 16 bit 40pin/42pin Adapter, PLCC32, PLCC44
- ATMEL AT89/MCS-51, FWH/HUB adapter
- TSOP48, TSOP32 Adapter and more.
* Uses the power supply from a USB port or from an optional power supply or plug pack (not supplied)
Note: Higher Vcc voltages (5.6v and 6.2v) will be available when an external AC power supply is used.
* Willem EPROM Programmer Version. (PCB5.0) with 32 pin ZIF socket
* Software willem (included in CD)
* Manual using the Program Willem EPROM (included in CD)
Software Willem EPEOM PCB45-1(0.98D9) **Alpha test**
* Deliverly time is approximately 2-7 days
* If you have any questions, please feel free to contact sivava email picture , we will try our best to resolve any problems you may have.
The Willem EPROM Programmer can support CHIPS(EPROM,EEPROM,FLASH,I2C,PIC,MCS-51,AVR, 93Cxx, ISP)
W25X010 , W25X020 , W25X040 , W25X080 , W25X16 , W25X32 , W25X64
MX25L512 , MX25L1005 , MX25L2005 , MX25L4005A , MX25L8005A , MX25L1605 , MX25L3205 , MX25L6405
EN25B05 , EN25B10 , EN25B20 , EN25B40 , EN25B80 , EN25B16 , EN25B32 , EN25B64
EN25P05 , EN25P10 , EN25P20 , EN25P40 , EN25BP80 , EN25P16 , EN25P32 , EN25P64
EN25D80 , EN25D16 , EN25F20 , EN25F40 , EN25F80 , EN25F16
A25L05P-B , A25L10P-B , A25L20P-B , A25L05P-T , A25L10P-T , A25L20P-T , A25L512
A25L010 , A25L020 , A25L040 , A25L080 , A25L016 , A25L032
Pm25LV512 , Pm25LV010 , Pm25LV020 , Pm25LV040 , Pm25LV080 , Pm25LV016
M25P05 , M25P10 , M25P20 , M25P40 , M25P80 , M25P16 , M25P32 , M25P64 , M25PE10 , M25PE20 , M25PE40 , M25PE80 , M25PX80 , M25PX16 , M25PX32 , M25PX64
S25FL004A/040A , S25FL008A , S25FL040A-T , S25FL040A-B , S25FL016A , S25FL032A , S25FL064A
AT25DF021 , AT25DF041A , AT25DF081 , AT25DF081A , AT25DF161 , AT25DF321A , AT25DF641 , AT26DF041 , AT26DF161A , AT26DF321
27C64 , 27C128 , 27C256 , 27C512 , 27C010 , 27C020 , 27C040 , 27C1001
M27C1001 , M27C2001 , M27C4001 , 27C080 (A19) , M27C801 , M87C257
2716 (Vpp25V) , 2732 , (adapter DIP24) , 2764 , 27128 , 27256 , 27512 , 27010,
Vpp12.5V (21Vpp Modify Circuit)
28C65 , 28C64 , 28C128 , 28C256 , 28C512 , 28C010 , 28C020 , 28C040
(Adapter or Jumper)28C16,XLS2816 (DIP24)
28F64 , 28F128 , 28F256 , 28F512 , 28F010 , 28F020 , SST39VF1601 , SST49LF002B , SST49LF003B , SST49LF004B , SST39LF040B
SST39LF/VF020 , MX26C1000 , MX26C2000 , MX28F1000 , MX28F2000 , A49LF004TL-33F , A49LF004TX , A49LF040A , A49LF040N , 49LF040TL , A49LF040TL
Am28F256A , Am28F512A , Am28F010A , Am28F020A (New command erase/prog.) , A49LF004 , A49LF004TL , A49LF004TL
- intel - i28F001BX , 28F004 , 28F008 , 28F016
- Winbond - 39v040AP , 39v080AP , W39V040FA , W39V040FAP , W39V040BP , W39V04OBPZ , W49V040FBPZ , W39V040FCP , W39V040FCPZ
W39V080AP , W39V080APZ , W39V080FAP , W39V080FAPZ
SPD IC: SD Memory: SPD24C02 , SPD24C04 , SPD24C08 , SPD24C16 , SPD24C32(32)
DDR Memory: SPD 24C02 , 24C04 , 24C08 , 24C16 , 24C32(32) , 93C06(8 bit) , 93C46(8 bit) , 93C56(8 bit) , 93C57t(8 bit) , 93C66(8 bit) , 93C76t(8 bit)
PM49FL002T , PM49FL004T , PM49FL008T , PM49F002T , PM49F020 , PM49F008T , PM49F020A , PM49F004T , PM49F040 , PM49FLxx , EON29Fxx
29F64 , 29F128 , 29F256 , 29F512 , 29F010 , 29F020 , 29F040 , 29F080 , 29F001 , 29F002 , 29F004 , 29F008 , 29F016 , 29F032 , V29C51002T , 29LV040
24C02 , 24C04 , 24C08 , 24C16 , 85C72 , 85C82 , 85C92
24C32 , 24C64 , 24C128 , 24C256 , 24C512
93C06 , 93C46 , 93LC46 , 93C56 , 993C57, 93C66 , 93C76 , 93C86 (8bit)
AT59C11 , AT59C22 , 9AT59C13, CAT35C102 , CAT35C104 , CAT35C108 (pullup pin7)
<-Data 16bit -> (pin 6 ->NC [No Connect])
93C06A , 93C46X , 93C56 , 93C66 , 93C76 , 93C86 (NS)
16C84 , 16F84 , 16F84A , 16F627/16F628 , 12C508/A , 12C509/A , 12CE518 , 12CE519 , 16C505
PIC16F72 , PIC16F73 , PIC16F74 , PIC16F76 , PIC16F77 , PIC16F737 , PIC16F747 , PIC16F767 , PIC16F777 , PIC16F87/88 , PIC12F675x , PIC16F785/PS200 , PIC16F716
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61 , PIC16C71 , PIC16C62/64 , PIC16C65 , PIC16C73
PIC16C62A , PIC16C62B , PIC16C62C , PIC16C63 , PIC16C63A , PIC16C64A , PIC16C65A , PIC16C65B , PIC16C66 , PIC16C67
PIC16C72 , PIC16C72A , PIC16C73A , PIC16C74A , PIC16C74B , PIC16C76 , PIC16C77 , PIC16C620 , PIC16C620A , PIC16C621 , PIC16C621A , PIC16C622 , PIC16C622A
PIC16CE623 , PIC16CE624 , PIC16CE625 , PIC16C710 , PIC16C711 , PIC16C712 , PIC16C716 , PIC16C773 , PIC16C774 , PIC16C745 , PIC16C765 , PIC16C923 , PIC16C924
PIC16C925 , PIC16C926 , PIC16C554 , PIC16C556 , PIC16C557 , PIC16C558 , PIC16C432 , PIC16C433 , PIC16C717 , PIC16C770 , PIC16C771 , PIC16C781 , PIC16C782
-Additional PIC microchip 14bit
PIC12F629 , PIC12F675 , PIC16F630 , PIC16F676 , PIC12F635 , PIC12F683 , PIC16F636 , PIC16F684 , PIC16F688 , PIC16F72 , PIC16F73 , PIC16F74
PIC16F76 , PIC16F77 , PIC16F737 , PIC16F747 , PIC16F767 , PIC16F777 , PIC16F87 , PIC16F88 , rfPIC12F675x , PIC16F785 , PS200 , PIC16F716
-Additional microchip 14bit OTP
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61 , PIC16C71 , PIC16C62 , PIC16C64 , PIC16C65 , PIC16C73
PIC16C62A , PIC16C62B , PIC16C62C , PIC16C63 , PIC16C63A , PIC16C64A , PIC16C65A , PIC16C65B , PIC16C66 , PIC16C67 , PIC16C72 , PIC16C72A , PIC16C73A , PIC16C74A
PIC16C74B , PIC16C76 , PIC16C77 , PIC16C620 , PIC16C620A , PIC16C621 , PIC16C621A , PIC16C622 , PIC16C622A , PIC16CE623 , PIC16CE624 , PIC16CE625 , PIC16C710 , PIC16C711
PIC16C712 , PIC16C716 , PIC16C773 , PIC16C774 , PIC16C745 , PIC16C765 , PIC16C923 , PIC16C924 , PIC16C925 , PIC16C926 , PIC16C554 , PIC16C556 , PIC16C557 , PIC16C558
PIC16C432 , PIC16C433 , PIC16C717 , PIC16C770 , PIC16C771 , PIC16C781 , PIC16C782
-Additional PIC microchip 12bit (FLASH memory)
PIC12F508 , PIC12F509 , PIC10F200 , PIC10F202 , PIC10F204 , PIC10F206 , PIC16F505 , PIC16F54 , PIC16F57
PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320 , PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720
PIC18F2331 , 18F2431 , 18F4331 , 18F4431 , PIC18F6525 , 18F6621 , 18F8525 , 18F8621 , PIC18F6585 , 18F6680 , 18F8585 , 18F8680 , PIC18F2439 , 18F2539 , 18F4439 , 18F4539
PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585 , PIC18F2610 , PIC18F2620 , PIC18F2680 , PIC18F4410, PIC18F4420 , PIC18F4455
PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585 , PIC18F4610 , PIC18F4620 , PIC18F4680
-Additional Find and edit value OSCCAL (PIC12F629 , PIC12F675 , PIC16F630 , PIC16F676)
-Additional Edit config at address 0x2008,0x2009 (PIC12F635 , PIC12F683 , PIC16F636 , PIC16F684 , PIC16F688 , PIC16F785)
PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767 , PIC16F74 , PIC16F872 , PIC16F876 , PIC16F877 , PIC16F876A , PIC16F873A, PIC16F819
eprom PIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW , PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431
AT29C256 , AT29C512 , AT29C010A , AT29C020 , AT29C040 , AT29C040A
W29EE512 , W29EE011 , W29EE012 , W29C020(128) , W29C040 , PH29EE010(W29EE011)
(disable prog. CPUIdle or CPUCool) AT49BV512
AT49F512 , AT49F010 , AT49F020 , AT49F040 , SST39SF010 , SST3S9F020 , SST39SF040 , AT49F001 , AT49F002 , AT49F008A
Am29F512 , Am29F010 , Am29F020 , Am29F040 , HY29F080 , 29F002 , 29F002T , Pm29F002T
[Atmel] AT25010 , 020 , 040 (A8-A0)
AT25080 , 160 , 320 , 640 , 128 , 256 (A15-A0)
25C080 , 25C160 , 25C320 , 25C640 , 25C128 , 25C256 , 25C512
AT25HP256 , AT25HP512 , M25P10 , M25P20 , M25P40
AT28C256 , AT28C010 , AT28C040
DS1220 , DS1225Y , DS1230Y/AB , DS1245Y/AB , DS1249Y/AB
6116 , 6264 , 62256 , 62512 , 628128
W27E512 , W27E010 , W27C010 , W27C020 , W27C040
SST27SF256 , SST27SF512 , SST27SF010 , SST27SF020
Vcc = 3.3-3.6V SST37VF512 , SST37VF010 , SST37VF020 , SST37VF040
PLCC 32 (with socket) to DIP 32, 28 Adapter (3-in-1)
29C512 , 29C010 , 29C020 , 29C040 , 28C512 , 28C010 , 28C020 , 28C040
27C010 , 27C020 , 27C040 , 27C080
28F512 , 28F010 , 28F020 , 28F040 , 28F001 , 28F002 , 28F004 , 28F512 , 28F010 , 28F020 , 28F040 , 28F001 , 28F002 , 28F004
29C512 , 29C010 , 29C020 , 29C040 , 29C001 , 29C002 , 29C004 , 29F512 , 29F010 , 29F020 , 29F040 , 29F001 , 29F00 , 29F004
49F512 , 49F010 , 49F020 , 49F040 , 49F001 , 49F002 , 49F004
Support chip 3.3V( 27LVxx , 29LVxx , 28FxxxB3 ) by select jumper on adapter
29C16A , 29C64 , 29C128 , 29C256 , 28C16A , 28C64 , 28C128 , 28C256
27C64 , 27C128 , 27C256 , 27C512
28F64 , 28F128 , 28F256 , 29C64 , 29C128 , 29C256 , 39F64 , 39F128 , 39F256 , 49F64 , 49F128 , 49F256
PLCC 32 Firmware HUB / LPC Adapter
82802AB , 82802AC , SST49LF002 , SST49LF003 , SST49LF004 , SST49LF008 , AT49LW040
AT49LW080 , SST49LF002A , SST49LF003A , SST49LF004A
SST49LF020 , SST49LF030 , SST49LF040 , SST49LF080 , W49V002A , W39V040A , PT49V004
Flash memory : DIP Chip ( BOOT BLOCK FLASH MEMORY )
TSOP 32 (14 mm,20 mm) to DIP 32 Adapter
TSOP 32, 40, 48 (with socket) Adapter (5-in-One)
28C512 ,28C010 ,28C020 ,28C040
29C512 ,29C010 ,29C020 ,28C040
27C010 ,27C020 ,27C040 ,27C080
28F512/010/020/040/001/002/004 ,29C512/010/020/040/001/002/004 ,SST39VF020
29F512/010/020/040/001/002/004 ,39F512/010/020/040/001/002/004 ,SST39VF020
49F512/010/ 020/040/001/002/004 ,SST39VF020
TSOP 28 (14 mm) to DIP 28 Adapter
28C16A , 28C64 , 28C128 , 28C256 , 29C16A , 29C64 , 29C128 , 29C256
29F64 , 29F128 , 29F256 , 39F64 , 39F128 , 39F256 , 49F64 , 49F128 , 49F256
24C02 , 24C04 , 24C08 , 24C16 , 85C72 , 85C82 , 85C92 , 24C32 , 24C64 , 24C128 , 24C256 , 24C512
AT29C256 , AT29C512 , AT29C010A , AT29C020 , AT29C040 , AT29C040A , W29C020(128) , W29C040
29F400 , 28F800 , 28F200 , 28F400 , 28F800
MCS 51 / AVR + PLCC44 Adapter Version.2 New!!!
AT89C51 , AT89C52 , AT89C55 , AT89LV51 , AT89LV52 , AT89LV55 , AT89S8252(8K+2K)
AT89S53 , AT89LS8252 , AT89LS53 , AT89C1051 , AT89C2051vAT89C4051 (20pin)
AT89C51RC (32KB)vAT89C55WD (6.2V) , SST89C54/58 , SI89C52
i87C51 , i87C51FA , i87C51FB , i8xC51 , i8xC52 , 8xC54 , i8xC58 (tWP = 100uS*25 Pulse)
Atmel AVR 8-bit RISC AT90Sxxx (Parallel programming)
(read , write , erase , verify , checkempty , Lockbits , Fusebits) [Flash memory / EEPROM]
AT90S1200 , AT90S2313 , 90S2333 , 90S4433 , 90S4414 , 90S8515 , 90S4434 , 90S8535
P8048AH , P8049AH , P8050AH , P8042AH Vea = 12V , P8041 , P8042
P8748 , P8749H , P8742H Vea = 18V
D8748 , D8749 , D8742 , D8741 , D8742 Vea = 18V
FLASH memory 8/16bit (Software Data Protection)
Am29F400 , Am29F800 , 29F160 29F320 (read , write byte mode) , HY29F200
HY29F400 , AT49F2048A , HY29F800 , AT49F2048A , AT49F4096A , AT49F8192A
FLASH memory 8/16bit (Vpp12V) (Software Data Protection)
i28F200 , i28F400 , i28F800 , i28F160 (TSOP48) , 28F001(DIP32 or PLCC32)
29LV200 , 29LV400 , 29LV800 , 29LV160 , 29LV320 (read,write byte mode)
MBM29LV002TA/BA , MBM29LV004 , MBM29LV008 , MBM29LV017 , MBM29LV080 , MBM29F002ST/SB , MBM29LV016 , Am29LV004 , Am29LV002 , 29LV008
MBM29F017A , MBM29F016A , MBM29F080 , 28F008SA , 29F004S5 , Am29F080 , Am29F016B , Am29F016 , Am29F017B , Am29F065MU
EPROM 16bit (DIP40) (1-4Mbit) Adapter Eprom 16bit Eprom only
27C1024 , 27C210 , 27C2048 , 27C2002 , 27C4096 , 27C4002
Schematic by Toomas Toots (read , Program byte mode by use Resister pull up Data Bus (0xFF) , A0 select low or high byte)
SOIC8(Surface-mount) to DIP8 Adapter
24Cxxx , 93Cxxx , PIC12xxx , 25xxx
