> #5 davis mechanical keyseater #25733

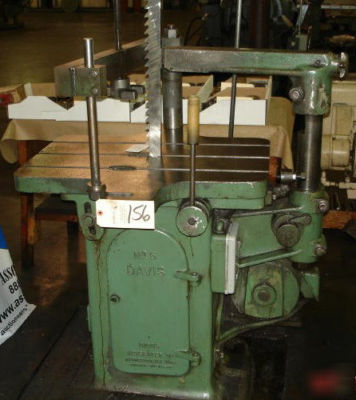

#5 davis mechanical keyseater #25733
New 1961, Serial No 15-502, Model 5
Keyway Width, Minimum..................... 1/16"
Keyway Width, Maximum..................... 1.5"
Cut Length w/16" Cutter, Maximum.......... 3"
Cut Length w/20" Cutter, Maximum.......... 7"
Cut Length w/24" Cutter, Maximum.......... 11"
Cut Length w/30" Cutter, Maximum.......... 17"
Cut Length w/34" Cutter, Maximum.......... 21"
Stroke Length, Maximum.................... 4.5"
Throat Distance, Cutter to Post........... 18.75"
Height Of Work, Maximum................... 14"
Table Dimensions (Overall) W x L.......... 30.25" x 31"
Number of T Slots in Table................ 3
Table Longitudinal Travel................. 1.375"
Included Taper Per Foot, Maximum.......... 3"
Strokes Per Minute........................ 33.5 SPM
Motor, Horsepower/RPM..................... 2 HP
Weight, Approximately..................... 1200 LBS
