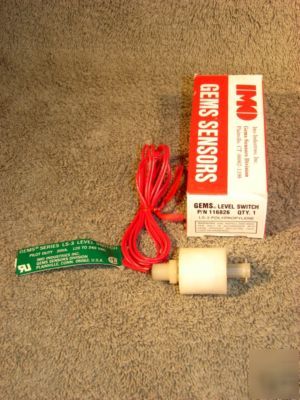

Gems sensors ls-3 level switch, float switch, 116826
IMO Industries, Gems Sensors Division
LS-3 Level Switch, Float Switch
Series LS-3, Part Number 116826
SPST (Single-Pole/Single-Throw) Contacts, (20VA 120/240VAC) 0.17-Amp at 120-VAC
1-inch Diameter Solid Polypropylene Float
Polypropylene Stem with 1/8-NPT Thread Mounting
PVC Lead Wires, 22 AWG, 24-inch Long
This level switch must be mounted vertically (or can be inclined up to 30-degrees) and can be supported from above or from below. This switch contains an hermetically sealed magnetic reed switch housed inside a polypropylene stem. A permanent magnet imbedded inside the polypropylene float controls opening and closing of the reed switch. Contacts can be changed to operate as "Normally Open" (Close On Rising Level/Open On Falling Level) to "Normally Closed" (Open On Rising Level/Close On Falling Level) by simply inverting the float on the stem.
