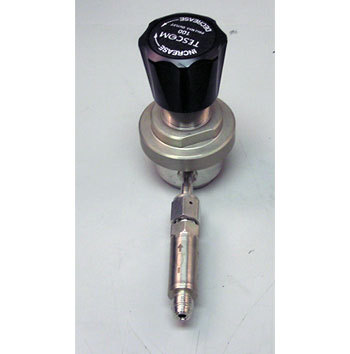

Tescom 44-2600 regulator pressure reducer valve filter
Tescom 44-2600 Regulator Pressure Reducer Valve Filter
pressure rating per criteria of ANSI/ASME B31.3
maximum rated inlet pressure . 400 or 3500 PSIG
outlet pressure ranges . . . . . . 0-25, 0-50, 0-100,
design proof pressure . . . . . 150% of maximum rated pressure
operating temperature . . . . . . -40 F to +165 F (-40 C to +74 C)
flow capacity 3500 PSIG inlet . . . . . Cv=.06 400 PSIG inlet . . . . . . Cv=.15
* Media Contact Materials body . . . . . . . . . . . . . . 316 Stainless Steel
bonnet . . . . . . . . . Nickel Plated Brass
diaphragm . . . . . . . . 316 Stainless Steel
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Teflon
* Features a large convoluted diaphragm for extreme sensitivity with minimum droop
* Repeatability: 1/2% of outlet pressure range
* Features a unique metal to metal diaphragm to body seal
