Hypro 5210C-f big twin piston pump 5206CF 10GPM @400PSI

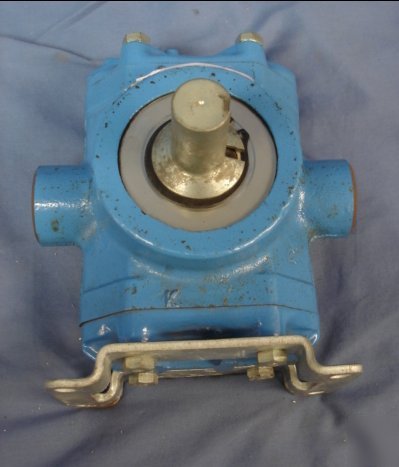

HYPRO 5210C-F Big Twin Piston Pump 5206CF 10GPM @400PSI
HYPRO 5210C-F Big Twin Piston Pump. 10 GPM @ 400 PSI @ 600 RPM Cast Iron pump.
The Hypro Series 5200 Big Twin piston pump is suitable for applications in high pressure washers for industrial and agricultural cleaning needs. It is also useful as a sprayer pump to apply a wide range of chemicals.
The Series 5200 is constructed of cast iron body and cylinder heads, unitized stainless steel valve assemblies and double row ball bearing supported crankshaft.
* Max. flow: 10 gpm/37.9 lpm
* Max. pressure: 400 psi/27.6 bar
* Max. rated speed: 600 rpm
* Max. fluid temperature: 140 F/60 C
* Port sizes: 3 4" NPT inlet, 3 4" NPT outlet
* Shaft size: 1" O.D. solid shaft or 1-3 8" I.D. hollow shaft(has a 1" shaft on it now)
* Pump shaft rotation: bi-rotational
Recommended to be used with a Model 3375-0003 surge tank
