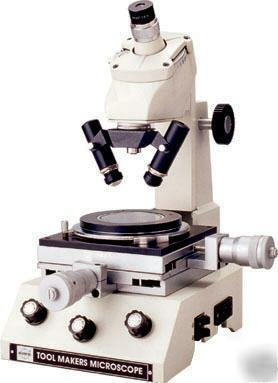

New toolmaker measuring microscope circular stage
Toolmakers Microscope for Linear & Angular Measurements
Rotary stage with Glass plate, Different Magnifications and Acessories Available
Monocular, Inclined at 30-degrees. Coupled with graduated Eyepiece Protractor.
Large and heavy base provides extra overall rigidity to the instrument.
152mm X 152mm size assembled on ball bearing guides to provide accurate and smooth stage stroke upto 50mm in each direction. Digital micrometers with LC 1 micron
Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illuminator with adjustable inclination for surface illumination of sample with relief structure, is also provided. Three separate knobs for different illumination are provided with variable light control on the front panel.
Different optional accessories are available.
Measurements available either in MM or Inches.
