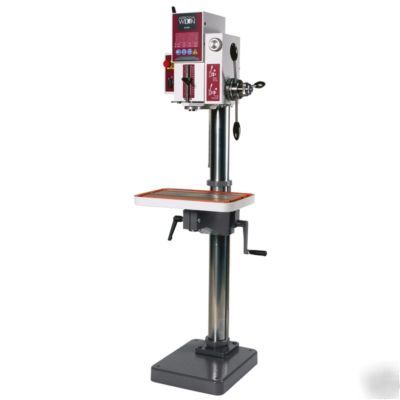

New wilton A2608-1 20" gear head drill press
New Wilton A2608-1 20" Gear Head Drill Press
Manual Feed, 2-Speed Motor, .75/1HP, 115V, 1PH
Helical gears for smooth, quiet operation
Quick release drill ejector
Safety latch to prevent head dropping when unclamped
Eight spindle speeds
T-Slotted table with coolant trough
Head and table rotate 360 degrees around column
Two position, High/Low switch
3-15/16" Column diameter
English/Metric depth gauge
A2608-2 Specifications:
Motor: 3/4 to 1HP, 220V, 1Ph
Range of Spindle Speeds (RPM): 8 (130, 260, 420, 840, 535, 1070, 1745, 3480)
Quill Diameter (in.): 2-3/8
Max Distance Spindle to Table ( in.): 35-5/8
T-Slots Number and Size (in.): 2 & 9/16
Work Table Weight Capacity (lbs.): 350
Drilling Capacity (in.): 3/4
Column Diameter (in.): 3-15/16
Drilling Capacity Mild Steel (in.): 1-1/4
Tapping Capacity Mild Steel (in.) :1/2
Quill Travel (in.): 5-1/8
Table Size (in.): 15-3/4 x 19-3/4
Drills to Center of Circle (in): 20
Vertical Movement of Drill Head: 8-5/8
Vertical Movement of Table (in.): 24-1/2
