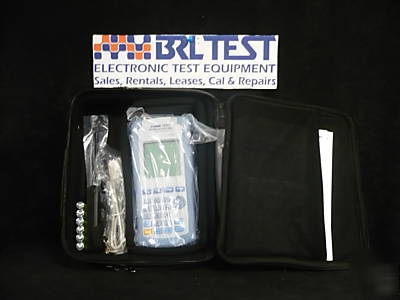

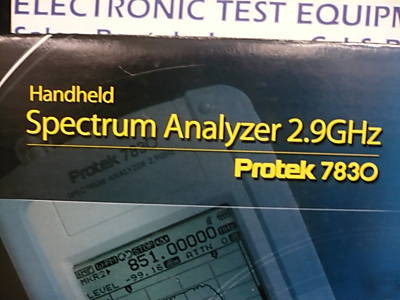

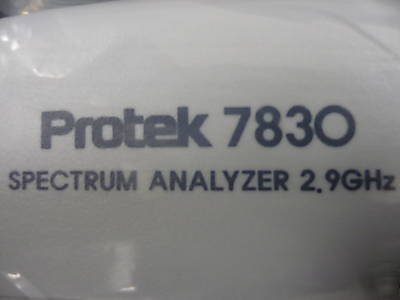

> Protek 7830 handheld spectrum analyzer 100KHZ to 2.9GHZ
Protek 7830 handheld spectrum analyzer 100KHZ to 2.9GHZ
- 100kHz to 2.9GHz measurement range
- Measures and demodulates W-FM /N-FM /AM /SSB signals
- Sweep modes (Free Run, Single Run, Squelch Run)
- PLL tuning system for precise frequency tuning
- 100 Saves and loads for waveforms and settings
- Enhanced Accuracy for Signal Level
- Marker /Delta Marker /Squelch Adjustment Function
- Channel Power Measurement Function
- Field Wireless Equipment Installation and Maintenance
- General field use for Communications Installation and Maintenance
- Cable installation and Maintenance
- RFID Tag RF Strength Measurement
- Jammer (for hospital, theater and military) Performance Test
- Satellite Antenna installation and Maintenance
- Tapping, Hidden Camera Detection
Resolution 3.125 (Multiple of 5 )
Modulation Bandwidth Wide FM : Apprx. 180 (-6dB)
Narrow FM : Apprx 12.5 / AM / SSB: Apprx 2.4 (-6dB)
Frequency Selection Start, Stop, Center span setup
Amplitude Measurement Range -20dBm to -110dBm
Average Noise Level Wide FM : -100dBm
Amplitude Units dBm, dBmV, dBuV
Reference Level Accuracy Wide FM / AM / SSB Typical 1.5dB(20 ~30 )
Reference Level Ranges 120dBm to -90dBm
Log Scale 0.2 dB/div Min. in 0.25 dB Steps(5 Display Division)
Internal Atten 10dB, 20dB, 30dB, 35dB
Trigger Source Narrow FM / Wide FM / AM / SSB
Trigger Mode Free Run/ Single Run/ Continous Wave/ Squelch Run
Marker Modes Marker/ Delta Marker/ Peak Search/ Marker to Center/ Channel Power
Memory Trace Storage Max 100 Waveforms and 100 States
Display Resolution 192 x 192 pixels
Input RF Input Connector N Type Female, 50 ohms
Maximum Input Power Max +10dBm, 5V RMS
Frequency Counter Range 35MHz ~ 2900MHz
RF Input Connector BNC Type Female, 50 ohms (Standard)
General Specification Operation Temperature 0 to 40
Storage Temperature 10 to 50
Power Power Source AA Type Ni-MH Rechargeable Battery x 6pcs
Power Adaptor SMPS Type AC Adapter DC 12V
Auto Power OFF/ 5 min/ 10 min/ 20 min/ 30 min
Dimension & Weight Size 102(W) x 229(H) x 45(D) mm
Weight Aprx. 2.2lmb / 700grams (Except Antenna)
Other Speaker 0.5W into 8 ohms Speaker
Antenna Dipole Antenna (Receive Only)
RS-232 Interface 9600 bps, 19200 bps, 38400 bps, 57600 bps, and 115200 bps
- AA Type Ni-MH Rechargeable Batteries (1.2V 2,700mAh)
