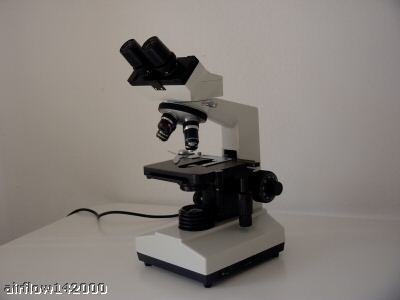

Research binocular compound microscope - high power
This microscope is manufactured under ISO 9001 Quality Control Standard ISO 9001:2000# 3302/200214382 . Excellent five years Factory Warranty
Brand new , perfect microscope . Its retail value is above $1,000.

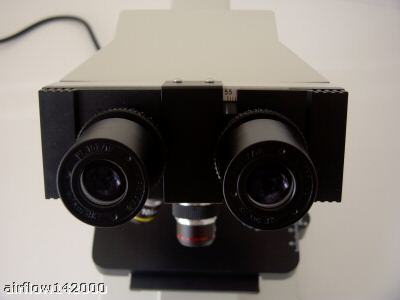

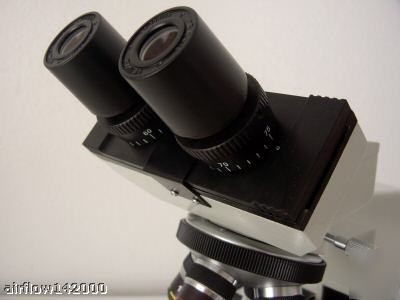

* Optical Head -45 Inclined 360 Swiveling Binocular Head
* Interpupillary distance - Adjustable from 55-75mm

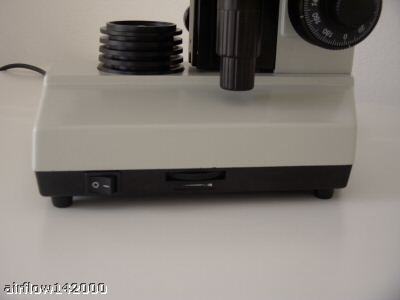

* Illuminator : Built-in electric illuminator; Halogen bulb 6v/20w

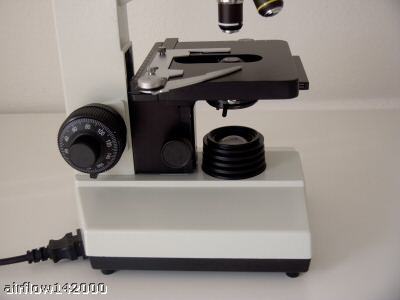

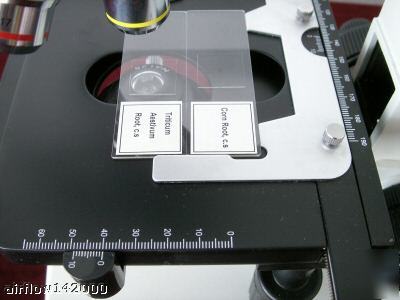

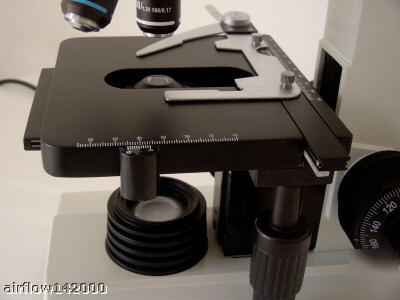

* Stage : Built-in Double layer Mechanical
* Stage Size : 5-1/2''x5-1/2"(140mm x 140mm )
* Stage Working Range : 2-15/16"x1-31/32" (75mm x 50mm )
* Abbe Condenser with Iris Diaphragm & Filter
* Condenser : Abbe N.A. 1.25 condenser with rack and pinion focusing control

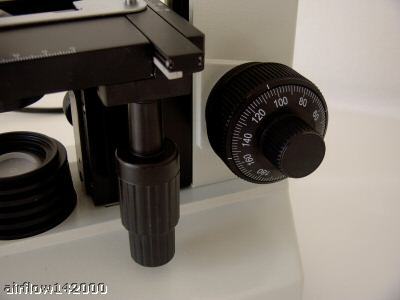

* Focusing Stop Lock on Left Side
* Focusing Traveling Range : 1-3/16" (30mm)
* Division of Fine Focusing : 0.0000787" (0.002mm)
* Power Supply : 110V-220V CE certified
* Rugged Cast Alloy Frame and Stand with Stain Resistant Enamel Finsh.

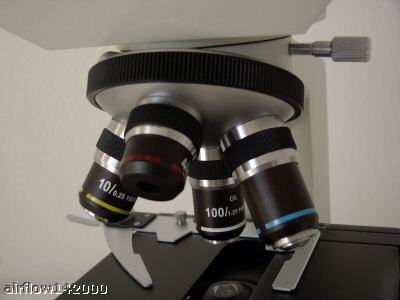

* Nosepiece - Quadruple nosepiece
* Objectives - Achromatic Objectives
* Microscope Size : 12''x9''x16''x. 18lbs
* Two Wide Field Eyepiece WF10x Eyepieces
* Two Wide Field Eyepiece P16x Eyepieces
* One Achromatic 4x Objective lens
* One Achromatic 10x Objective lens
* One Achromatic 40(s)x Objective lens
* One Achromatic 100(s.oil)x Objective lens
* Two Color Filters ( Blue, Green)
* Spare Bulb, Fuse and Immersion oil
