Actracer- diagnostic curve tracer for oscilloscopes x/y
Comparing Curve Tracer / Troubleshooting Board for Oscilloscopes
Multi-speed / Dual Probe System
Similar to the Huntron 2000's Diagnostic Capabilities
POWER OFF TESTING FOR ELECTRONICS

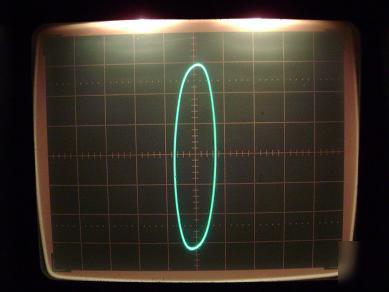

Applies a current limited AC voltage to a component or circuit and outputs a voltage vs. current
"characteristic curve" to an Oscilloscope (in XY Mode)
Voltage-Horizontal / Current-Vertical
Useful to determine the health of components quickly and determine faults in circuit or out
without applying main power. Safe, easy.
Compare mode alternates between circuits to locate potential problems (like the Tracker 2000)
On board Microcontroller controls the Alt-Rate between Test-1 and Test-2 probes, plus Hold function.
Alt-Rate selectable via push buttons from 1 to 9. Slow to fast. 7 segment LED Display shows ALT-Rate
Use "Hold" button to examine how a component or circuit "reacts" over an extended time period with either probe.
Or use to test or analyze components. Able to detect subtle problems otherwise difficult to see
- Seperate High / Low Voltage and Current selector switches. See specs.
Capacitors, Diodes, Transistors, Transformers, Inductors, Resistors
Circuit Board Traces, or almost any type of IC for signs of weakness, damage, or full failure
Opens and Shorts are easily detected
1. Good B-E Juncion NPN Transistor
3. Short Circuit or ground (return)
Effort was made to mimic expensive model as close as possible at lower ranges
Effective for most troubleshooting
ACtracer assembled and fully tested Circuit Board
Dual RCA Audio/Video cords w/ (2) RCA to BNC adapters for connecting to Scope X-Y inputs
(1) Set of Probes (2) Alligator clip-to-clips for Signal Return
- Oscilloscope w/ X-Y inputs and 10mV/Div on both channels for low range is required. 20mV/Div for high range
Please note there is no plastic "box" included. You will receive a quality Circuit Board with padding on the bottom for protection.
Can be custom mounted any way you like.
Click>>> for more details
Returns Accepted with 30 day money back but must not be tampered with. If anything ever goes wrong, contact me. I will repair it free or help you repair it.
