New *brand * thickness gage + communication + test block

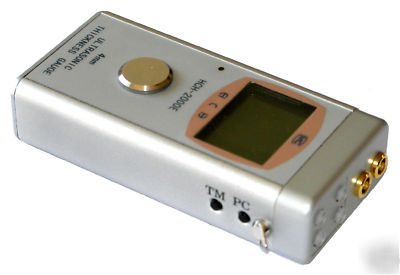

Ultrasonic Thickness Gauge / Tester, Model: HCH-2000E
Reads in both mm and inch, with 0.001 inch display resulotion.
Compact Design - Easy to Carry.
Communication Kit (Connection cable + Software) between the unit and PC is included
~~ 14 days Money Back Guarantee ~~
1. Main Processor with built-in Calibration Block (4.0 mm)
2. Standard Probes: PT-08 (end diameter: 8mm), for measuring range of 0.80 - 200.0 mm, or 0.03 - 7.87 inch, display in both mm and inch.
3. Communication kit (software CD + Cable)
4. Used 4 Step Calibration Block (Mild Steel, in mm)
5. Bottle of Coupling Paste (in gel state)
6. Operation Manual in English
7. Two AA Alkaline Batteries (2 X 1.5 Volt)
8. Leather Protecting Case
HCH-2000E Ultrasonic Thickness Gauge provides accurate thickness measurements based on the sound propagation velocity in a material. The new HCH-2000E uses the most advanced microprocessor and ultrasonic technology to offer thickness test users many outstanding features.
* The microprocessor allows fast data acquisition and analysis.
* The Micro Buttons provide easy operation, convenient adjustments to the system and testing parameters.
* This new tester features a wide measuring range, high display resulotion (0.001 in), high accuracy, portability, ease of operation
* Communication with computer is avaliable through standard RS-232 port only (NO USB connection to PC avaliable).
* Measuring method: Ultrasonic Pulse Echo
* Measuring range: 0.80 - 200.0 mm or 0.03 - 7.87 inch (steel)
* Accuracy: +/- (1%H 0.05) mm
* Sound velocity range: 1,000 - 9,999m/s, adjustable by 1 m/s to meet specific materials to be tested
* Memory capacity: 254 test values
* 4 digit LCD display (in both mm and inch) with automatic backlight while measuring
* Automatic power-off after being idle for 5 minutes
* Display Resolution: 0.1mm or 0.001 inch
* Downloading data to PC through standard RS-232 port only (NO USB connection to PC avaliable)
* Working temperature: -10 C ~ +60 C
* Size: 105mm x 50mm x 24mm (4.13 in X 1.97 in X 0.95 in)
* Power supply: Battery: ONE AA alkaline battery (1.5V)
* Weight: 110g (main unit); 40g (probe)
Used 4 step test block (in mm)
communication cable + software
