New christie lx 45 projector bulb install 100% working.


CHRISTIE LX 45 PROJECTOR NEW BULB INSTALL 100% WORKING
Newly install bulb and service.
TESTED 100% working with warrantee
Download manual from manufactural website.
MORE INFO FROM CHRISTIE WEBSITE
* 3 x 1.3" p-Si Active Matrix TFT LCD panels with Micro Lens Array
* 8-bit color resolution offering 16.7 million displayable colors
* Digital scaling of VGA to UXGA
* Digital de-interlacing of STV, DTV and HDTV formats with DDT technology
* The LX45 is lens-less configuration; optional lenses include:
* Short throw fixed 0.8:1 lens
* Ultra-long zoom 4.3-6.0:1 lens
* From 10:0 (up) to 1:1 on axis

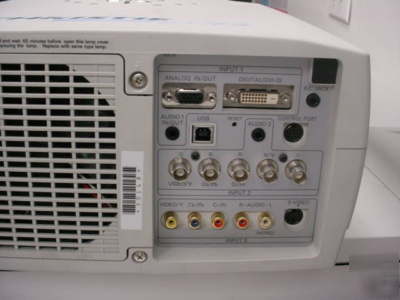

* Input 1: DVI-D (24-pin digital RGB) or HD15 (analog RGB ); audio input (stereo mini-jack)
* Input 2: 5 BNC (RGBHV, YPbPr, YCbCr); audio input (stereo mini-jack)
* Input 3: RCA (composite, YPbPr, and YCbCr), S-Video (4-pin mini DIN); audio input (2 x RCA L/R)
* Control port input: (8-pin mini DIN and USB type B)
* Two built-in 2W RMS speakers (per channel) and amplifier
* Compatibility with VGA, SVGA, XGA, SXGA, MAC, SUN and SGI sources
* Accepts composite video, S-Video and component video from VCR, DVD, laser disc players and video cameras
* Auto detects PAL, PAL-M, PAL-N, NTSC, NTSC4.43 and SECAM video standards
* Compatible with DTV/HDTV formats 480i, 480p, 575i, 575p, 720p, 1035i and 1080i HDTV compatible 800 TV lines horizontal resolution
* Digital Visual Interface (DVI-D) compatible, HDCP-compliant
* Video decoder with progressive scan decoding and automatic 3:2 pull-down
* Motorized lens shift (up/down)
* Digital keystone correction: vertical +/- 40 , horizontal +/- 10
* Digital zoom and pan (max. x49)
* User-definable start-up screen
* Software lock for remote and control pad operation
* Linear Fan Control System (FCS) for quiet operation
* Automatic set-up (phase/tracking/positioning)
* Optional ChristieNET for connection to TCP/IP network
* IR remote keypad with laser pointer and mouse control
* Easy set-up and intuitive onscreen display (OSD)
* Image aspect ratios: standard 4:3 or wide 16:9
* Multi-language OSD (English, German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Chinese, Korean, Japanese, Russian)
* Lamp life of 1000 hours (typical)
* Universal power AC 100 - 240V +/- 10%, 50/60Hz
* Current rating: 5.2A @ 120V, 2.6A @ 240V
* Power consumption: 465W maximum (450W economy mode)
* Thermal dissipation: 1590 BTU/hr or 1385 BTU/hr in economy mode
* Operating temperature: 40 to 95 F (5 to 35 C); Storage: 14 to 140 F (-10 to 60 C)
* Operating humidity: 20 - 80% (storage 0 - 90%)
* 18.5 lbs (8.4kg) without lens
* Remote control keypad with mouse control and laser pointer (IR/Wired operation)
* Mouse control cable (PS/2, Serial and MAC)
* AC cord x 2 (UL and European)
* Compatible with Kensington Microsaver
* Complies with all relevant worldwide EMC, EMI and safety standards
* The product complies with FCC Class B, CSA C22.2 No. 950, UL 1950, cUL and IEC950 (EN60950)
* Limited warranty 3 years parts and labor (excluding lamp)
* Lamp warranty 120 days or 500 hours (whichever comes first)
