T5 ho fluorescent 6 lamp fixture-best grow lights
6 LAMP T5-HO (HIGH OUTPUT) FLUORESCENT HIGH BAY FIXTURE - 31,000 LUMENS
T5HO Fluorescent High Bay Fixtures are specifically designed to replace conventional H.I.D. lighting in commercial / industrial applications. It's an ingenious blend of technologies as it combines the advantage of T5 fluorescent lamps with the mounting flexibility of high bays. The Fluorescent High Bay is an environmentally friendly lighting solution because it exceeds the demands of today's growing energy requirements.

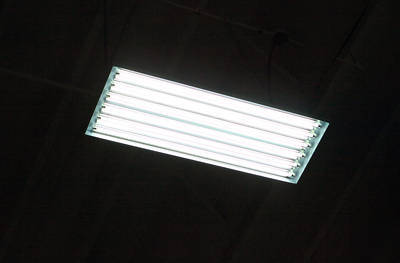

These are the same fixtures illuminating Home Depot, Lowes, Costco, Walmart, Target and other large retail facilities. The secret to these fixtures performance lies in the multi-faceted, enhanced aluminum reflectors that encase each T5 high output lamp and focuses the output for maximum intensity. Coupled with the excellent color rendering, lumen maintenance, and energy efficiency of today's fluorescents, fluorescent high bay fixtures can be used in applications normally reserved for HID's.
Save over $51.00 a year per fixture in electricity costs
A four-light 54-watt HO T5 high bay requires only 216 watts as compared to the metal halide which consumes 454 watts, a dramatic 50% savings in energy usage yet very similar in light output. In addition, the fluorescent high bay produces brighter, more even illumination with features like instant on, built-in switching and low-temperature operation. T5HO Fluorescent High Bay fixtures run very cool which helps keep the warehouse/work area cooler unlike conventional metal halide fixtures that add heat to your work area.
Maintain optimum light output throughout the lifespan of the lamp
Standard 350-watt metal halide fixtures are rated for 29,000 initial lumens and lose up to 45% of their lighting ability through depreciation and fixture inefficiencies. When compared to only a 6% loss of the 6 Lamp T5HO Fluorescent High Bay rated for 31,000 initial lumens, the maintained lumen output is virtually the same giving you optimum light output throughout the entire life of the lamp.
Six T5HO lamps are half the price of one 400-watt metal halide. This is a big savings when it's time to replace lamps in multiple fixtures.
Instant on, no waiting start up time like metal halides
Because our T-5 HO Series High Bay's are instant on, now you can shut the lights down in the warehouse and not have to worry about typical restrike times of up to 14 minutes like on a standard metal halide high bay light. In the event of a temporary power lapse, the lights in your facility will relight instantly eliminating the any safety issues caused by a dark workplace. Color rendition (CRI) values are much higher than Metal Halide so colors appear much more natural. When a lamp reaches the end of its life the other lamps will continue to burn so that the fixture continues to produce light until the old bulb can be changed.
Our T5HO Fluorescent High Bay Fixture has been designed to be Contractor Friendly by including features that make it easier to install and maintain. The fixture accepts multiple suspension methods including 3/4" threaded pipe for direct replacement of existing high bay fixtures.
T5 Hi Bay provides the latest technology in energy efficient lighting for medium and high bay warehouses, manufacturing plants, sports facilities and retail spaces.
Our new design features a 95% reflector, occupancy sensor ready wiring, and multi-level switching capabilities.
Delivers 31,000 lumens from our 342 Watt six light unit. Lumen maintenance of over 95% ensures proper light levels over life.
Easily mounts with V clips (included) or optional pendant, cable or stem.
Wire Guard adaptable. Optional wire guard in 6 and 9 gauge wire with fastener kit.
Bulbs: Uses (6) 54W T5 5000k High Output Lamps (Included)

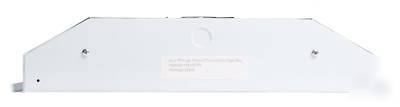

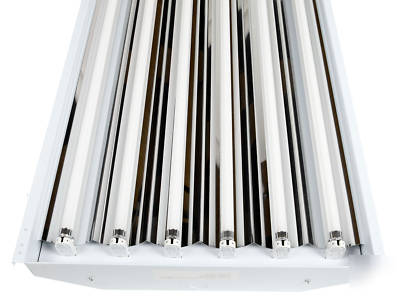

Housing: Rigid die-formed 22GA cold rolled steel with precision 95% reflector
Finish: Durable Post-Painted White Powder Coat Finish

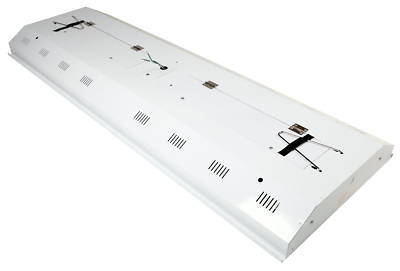

Ballast Access: Ballasts are mounted on the inside of hinged access doors on top of fixture
Ballasts: Electronic Programmed Start for long lamp life, Extra switch leg and extra long lead wire allows for easy occupancy sensor adaptation. High Power Factor, Class P, Type 1 Outdoor, Sound Rating A, Inherent Thermal Protection.

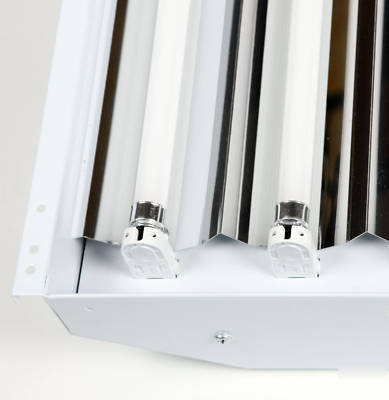

Lampholders: G5 push through sockets for F54T5 High Output lamps
Mounting: Supplied with V clips
Voltage: Multi-Volt, 120v, 208v, 240v & 277v @ 50/60Hz
Minimum Start Temperature: -22 degrees Fahrenheit
Dimensions: 48.25" x 17" x 3.5"
Warranty: 5 Year on Ballasts
These 6-lamp T5 HO High Bay fixtures can be used in any of the following applications:
Factory and Production Facilities

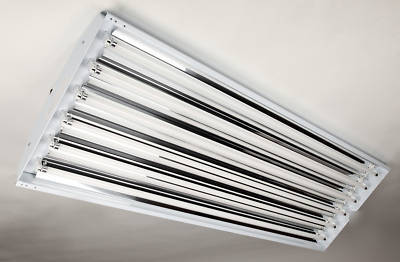

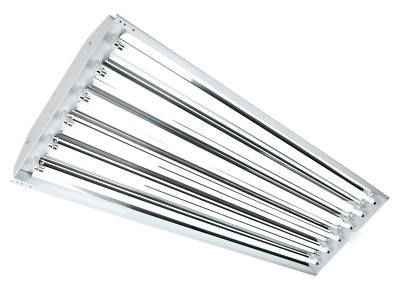

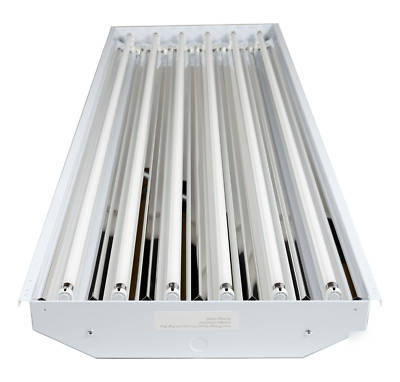

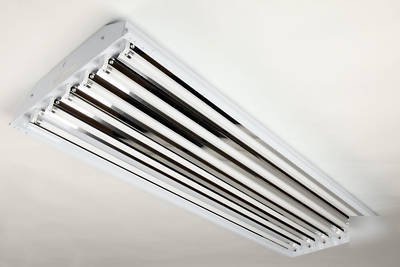

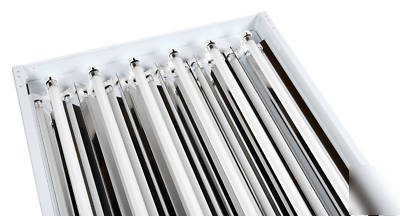

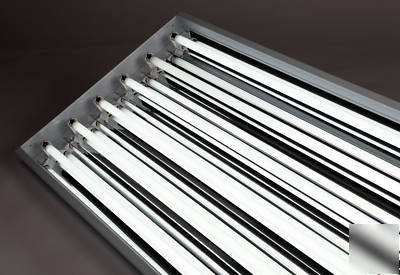

Pictures listed are of actual fixture for sale.
If you are interested in multiple fixtures, please call us for a package deal.
