Agilent E3631A 80W triple output dc power supply 25V

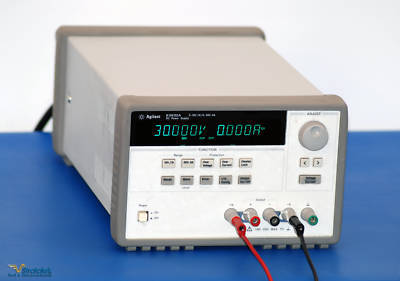

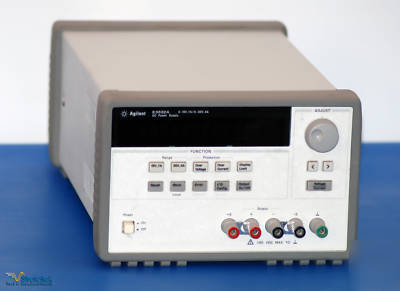

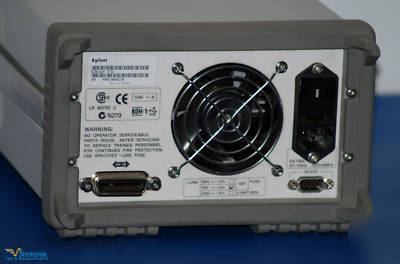

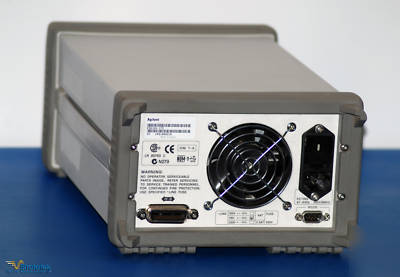

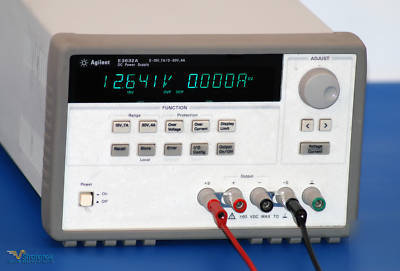

This item is a used HP Agilent E3631A DC Power Supply in great condition. The unit has been fully tested and values verified. Please see the pictures where the actual unit is shown.
Agilent basic DC power supplies offer essential features for a tight budget. The triple output, 80 W, GPIB, E3631A provides small, compact size for bench use; low output ripple and noise; built-in measurements and basic programmable features with GPIB and RS232 interface. This clean and reliable supply is designed for general purpose applications; and combines convenient benchtop capabilities with flexible system features in a compact, multi-output package.
* Output 1: 0 to 6 V, 0 to 5 A
* Output 2: 0 to +25 V, 0 to 1 A
* Output 3: 0 to -25 V, 0 to 1 A
* Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
* + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
* Normal Mode Voltage: <350 Vrms/ 2 mV p-p, <350 V rms/2 mV p-p, <350 V rms/2 mV p-p
* Normal-mode current: <500 A rms, <500 A rms, <2 mA rms
* Common-mode current: <1.5 A rms, <1.5 A rms, <1.5 A rms
* Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
* Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
