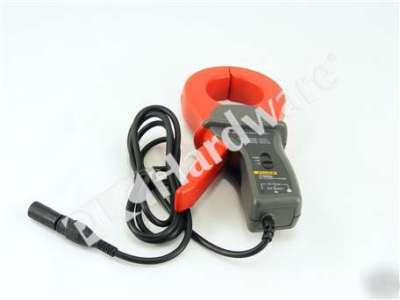

Fluke I1000S ac current probe clamp 1000A
Nominal current range - 10 A, 100 A, 1000 A, Continuous current range - 0.1 A - 10 A, 0.1 A - 100 A, 1 A - 1000 A, Maximum Non-Destructive Current - 2000 A, Lowest measurable current - 0.1 A, Basic Accuracy - 1% + 1 A (48-65 Hz) (% reading + floorspec), Useable frequency - 5 Hz - 100 kHz, Output level(s) - 100 mv/A, 10 mv/A, 1 mv/A, Safety - CAT III, 600 V, CAT IV, 300 V, Maximum voltage - 600 V AC, Maximum conductor diameter - 54 mm, Output cable length - 1.6 m, BNC Adapter.
The Fluke i1000s is a clamp-on ac current probe designed to expand oscilloscope applications in industrial and power environments. Ideal for measuring distorted current waveforms and harmonics. This Current Probe provides the following features: Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit. A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays. Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector. Can be used with Multimeters with optional PM9081/001 BNC/Banana adapter.
One Fluke i1000s Clamp-on AC Current Probe in excellen working and cosmetic condition.
The unit is tested and comes with warranty.
