20.3" swg mori seiki cl-203B cnc lathe, msg-803,lg-05 g


20.3" Swg Mori Seiki CL-203B CNC LATHE, MSG-803,LG-05 G
20.3" Swing Mori Seiki CL-203B CNC LATHE, MSG-803,LG-05 Gantry, Work Stocker,Chip Conv

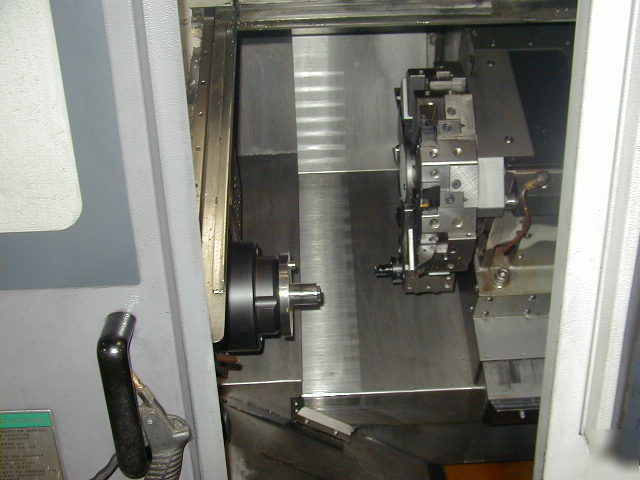

MORI SEIKI MODEL:CL-203B CNC LATHE WITH GANTRY-TYPE LOADER
SWING OVER BED .......................... 20.3"
MAX TURNING DIA ......................... 16.1"
MAX TURNING LENGTH ...................... 11.4"
BAR WORK CAPACITY ....................... 2.5"
TYPE OF SPINDLE NOSE .................... A2-6
THROUGH SPINDLE HOLE DIA ................ 2.8"
SPINDLE SPEED RANGE ..................... 35-3500 RPM
X-AXIS TRAVEL ........................... 9.3"
Z-AXIS TRAVEL ........................... 12.2"
NUMBER OF TOOL STATIONS ................. 10
TURRET INDEX TIME ....................... 0.7 SEC.
SHANK HEIGHT FOR SQUARE TOOL ............ 1"
SHANK DIAMETER FOR BORING BAR ........... 1.5"
RAPID TRAVERSE RATE ..................... 1,181 IPM
SPINDLE DRIVE MOTOR (30 MIN/CONT) ....... 15/10 HP
APPROX MACHINE WEIGHT ................... 5390 LBS
- 14 STATION ROTARY WORKSTOCKER (RIGHT SIDE INSTALLATION)
- MAGNETIC TYPE REAR DISCHARGE CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
