2X100MHZ pc usb oscilloscope, spectrum analyzer, meter
2 100MHz PC USB Oscilloscope, Spectrum Analyzer, Multimeter, Signal Generator*
*Signal Generator function is available via sound card or other DAC device, rather than the VT DSO-2810F unit

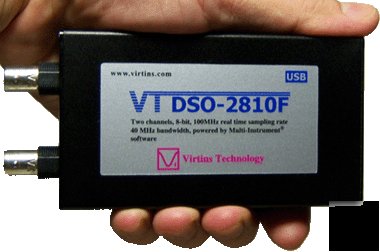

1) VT DSO-2810F unit with a hardware bundled Multi-Instrument Standard software license
2) 2 40MHz Oscilloscope Probe PK-8040 with two switchable positions: 1, 10
4) CD (contains the copy-protected Multi-Instrument software and VT DSO-2810F driver)
2. VT DSO-2810F Hardware Specifications
100MHz, 50MHz, 20MHz, 10MHz, 5MHz, 2MHz, 1MHz, 500kHz, 200kHz, 100kHz, 50kHz, 20kHz
Roll Mode, trigger condition not applicable
10KHz, 5kHz, 2kHz, 1kHz, 500Hz, 200Hz, 100Hz, 50Hz, 20Hz, 10Hz, 5Hz, 2Hz
(one selector for two channels)
20 s~100ms (with buffer fully filled)
132 mm (L) 63 mm (W) 24 mm (H)
Under these input voltage range selections, the actual measurement range is: -1.05V~1.12V, -10.5V~11.2V, -21V~22.4V respectively.
With the VT DSO-2810F unit connected to the computer, the Multi-Instrument software will run under the licensed mode. In Multi-Instrument, the ADC device and DAC device can be independently selected. For example, you can use the VT DSO-2810F as the ADC device and your computer's sound card as the DAC device, and they can work simultaneously. Or, you can use the sound card for both ADC and DAC. Note: the test lead (or probe) for sound card is not included in this pacakge, but you can make the connection by yourself or purchase it from us separately.
PC or Laptop with Microsoft Windows 98 or greater, Microsoft NT or greater, with a USB port. Screen horizontal resolution is recommended to be equal to or greater than 1024 pixels.
Software upgrade in the same level is always FREE. When a new version is available, you can just uninstall your current version, download and re-install the new version, as long as the VT DSO-2810F unit is still supported by the new version.
Software upgrade to a higher level can be purchased from our webiste. The software license bundled within the VT DSO-2810F hardware unit is remotely upgradable.
(1) Measurements of a 500Hz sine wave and a 1kHz square wave
