National instruments ni pxi-2590 multiplexer switch

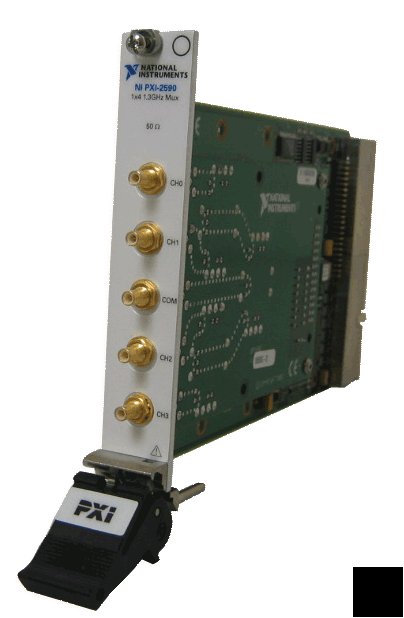

National Instruments NI PXI-2590 Multiplexer Switch
The National Instruments PXI-2590 is a general-purpose, 4-channel, RF multiplexing switch module for use in automated measurements. The NI PXI-2590 uses single-pole double-throw high-bandwidth relays capable of switching signals from DC to 1.3 GHz. The characteristic impedance of the channels is 50 . The maximum rated voltage of the switch is 24 VDC, and the maximum rated current is 1 ADC.
* High-bandwidth non-terminated relays
* Excellent insertion loss, VSWR, and isolation specifications
* Fully software programmable
* 50 characteristic impedance
* Data Sheet | Specifications (pdf)
