2004 sharp sed-300B ram-type edm w/19 hrs on meter

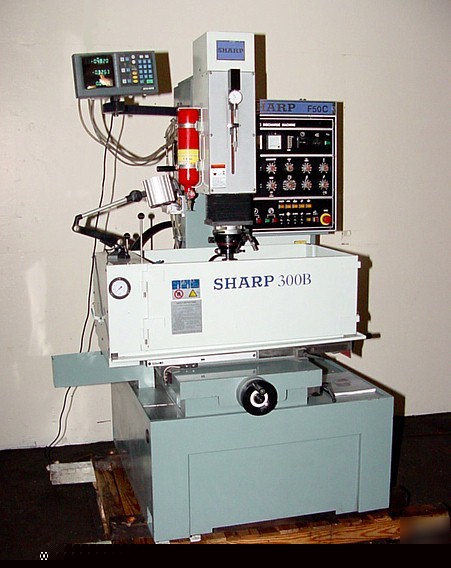

2004 SHARP SED-300B RAM-TYPE EDM w/19 Hrs On Meter
SERIAL NUMBER: 0083020 MFG: 2004
LIKE NEW - TOTAL HOURS ON METER - 19
- MODEL F50C (50 AMP) POWER SUPPLY
(ATTACHED, NOT SEPERATE FROM MACHINE).
- "SUPER-FINISH" & "MIRROR" FINISHING ABILITY
- SUPER PRECISION "SCHNEEBERGER" ROLLER GUIDE ON RAM
- WORK TABLE COATED WITH "TURCITE-B"
- ACU-RITE 3 AXIS DIGITAL READOUT SYSTEM
- AUTOMATIC FIRE EXTINGUISHER SYSTEM
Work Table Size....................... 23.6" x 11.8"
X x Y Travel.......................... 11.8 x 7.8"
Ram servo travel...................... 7.8"
Backslide travel...................... 7.87"
Ram Platen to Work Table.............. 7.7" - 15.5"
Max. Electrode Weight................. 132 lbs
Max. Workpiece Weight................. 1200 lbs
Work Tank Capacity.................... 33" x 20" x 12"
Weight of Machine Unit................ 2640 lbs
Dimensions W x D x H.................. 60" x 63" x 77"
Max current output........... 50 amps
Total Power Input............ 4.5 kva
(square in/hr)............. 1.30
Electrode Wear Ratio......... 0.2%
Best Surface Roughness....... 0.25 umRa
Net weight................... 396 lbs
Dimensions (W x D x H)....... Built-In
Capacity..................... 63 gal
Pump......................... 0.5 hp
Net Weight................... Built-In
Filter Method................ Paper Filter
Outside Dimensions........... Built-In
MACHINE IS IN LIKE NEW CONDITION - ALL PLATES AND CONTROLS
HAVE THE ORIGINAL FACTORY PROTECTIVE PLASTIC STILL ON THEM.
