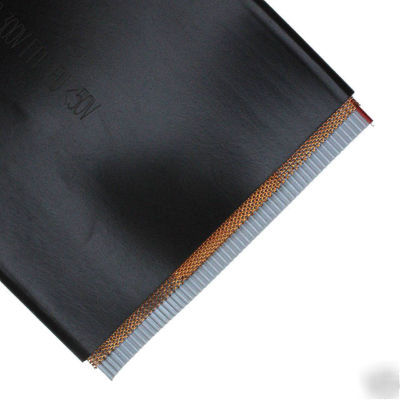

3Mâ„¢ shielded/jacketed, flat ribbon cable #3517-25
http://multimedia.3m.com/mws/mediawebserver?66666UuZjcFSLXTt4Xf65x46EVuQEcuZgVs6EVs6E666666-
http://parts.digikey.com/1/parts/40038-cable-25-cond-100ft-shield-flat-3517-25-100sf.html
3M Shielded/Jacketed, Flat Cable
.050 28 AWG Stranded, PVC/PVC 3517 Series
Meets external wiring requirements of
National Electrical Code, Article 725 (CL2)
UL listed for USA and Canadian markets
28 AWG stranded wire on .050 inch centers permits mass termination to broad line of IDC connectors
360 degree expanded copper shielding provides
20 db average shielding effectiveness
Primary cable is zippable for branching or discrete terminations
Date Modified: November 15, 2006
Jacket Material: Polyvinyl Chloride (PVC) Color: Black
Standard: (UL) CL2 75C 28 AWG or AWM 20879 3M NU C AWM IIA/B 80C 300V FT1 EU<50V
Conductors: 28 AWG, 7 36 AWG [ 7 0.127 ] Tinned Stranded Copper
Shielding Material: Expanded Copper
Voltage Rating: USA: N.E.C. 725, CL2 or AWM 300 V Canada <50 V EU: <50 V
Insulation Resistance: (Primary Cable) >1 1010 /10 ft [ 3 m ]
Characteristic Impedance: 70 119
Capacitance: 21.5 pF/ft [ 70.5 pF/m ] 12.7 pF/ft [ 41.7 pF/m ]
Inductance: 0.11 H/ft [ 0.35 H/m ] 0.18 H/ft [ 0.59 H/m ]
Propagation Delay: 1.51 ns/ft [ 4.95 ns/m ] 1.51 ns/ft [ 4.95 ns/m ]
Velocity of Propagation: 67% 67%
Note: Unbalanced is measured between ground-signal-ground conductors, with shield grounded. Balanced is measured between signal conductors within a pair, with the shield floating.
Temperature Rating: USA: CL2; 75 C or AWM: -20 C to +80 C Canada: 80 C
Flammability Rating: USA: N.E.C. 725, CL2 Canada: FT1
*"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by
3M in writing, this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20879)
http:// /interconnects/
3M is a trademark of 3M Company. For technical, sales or ordering information call
T o le ra nce U n le ss N o te d
[ ] D im ensio ns fo r R e fe re nce
Paper PVC Primary .026 Min [ 0.66 ] (Mfgr. Option) Insulation PVC Jacket
.005 [ 0.13 ] Ref 28 AWG 7 X 36 AWG [ 7 X 0.127 ] Expanded Copper Tinned Stranded Copper Conductors
Note: Red marking on edge of primary cable designates wire #1.
C = Canadian Certified Version Blank = Standard
Note: Contact 3M for availability of additional TS-0069-20 conductor counts and/or custom roll lengths. Sheet 2 of 2
