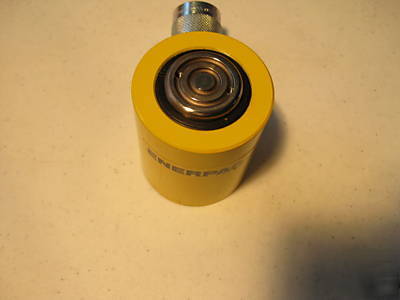

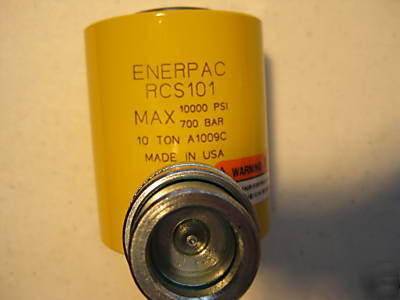

Enerpac rcs-101 low hght single acting cylinder (YB59)
* Single-Acting Hydraulic Cylinders
* Designed for general-lifting purposes in everyday MRO applications.
* Cylinders have spring return and mount in any position. All units include female coupler, collar thread protector, hardened removable grooved saddle, and mounting holes in base for fast and easy fixturing.
* Low-Height and Flat-Jac(R) Cylinders
* Cylinders have low retracted heights-ideal for tight or confined spaces.
* Internal return spring included. Enerpac RSM-50 comes with 1/4" female coupler and reducer bushing. Remove bushing to use with 3/8" NPTF couplers and hose.
Single Acting Cylinder, Low Height, Steel, Capacity 10 Tons, Stroke 1.50 In., Oil Capacity 3.35 Cu.-In., Retracted Height 3.47 In., Outside Dia. 2.75 In., Plunger Dia. 1.50 In., Plunger Thread M4, Bolt Circle Dia. 1.03, Includes Female Coupler and Dust Cap
ItemSingle Acting Cylinder TypeLow Height Material of ConstructionSteel Capacity (Tons)10 Stroke (In.)1.50 Oil Capacity (Cu.-In.)3.35 Retracted Height (In.)3.47 Outside Dia. (In.)2.75 Plunger Dia. (In.)1.50 Plunger ThreadM4 Bolt Circle Dia.1.03 IncludesFemale Coupler and Dust Cap Weight5.80
