Gallmeyer livingston model 550 hydraulic surface grinde

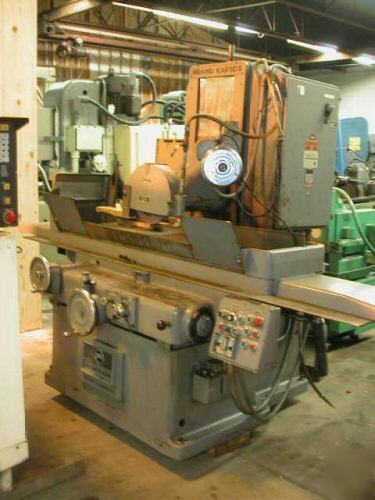

1-GALLMEYER LIVINGSTON MODEL 550 12" X 36"
HYDRAULIC WET SURFACE GRINDER WITH INCREMENTAL
Working Surface of Table................12" x 36"
Longitudinal Table Speeds...............3 to 150 FPM
Hydraulic Table Travel, Longitudinal....47-1/2"
Transverse, Maximum.....................13-3/4"
Standard Wheel Size.....................14" x 1-1/2" x 5"
Vertical Movement of Wheel Head.........19"
Distance From Wheel To Table, Max. .....18" (Under 14" Wheel)
Bottom of Spindle Housing..............3"
Standard Spindle Speed..................1750 RPM
Walker 12" x 36" Electromagnetic Chuck
Approximate Overall Dimensions..........172"W x 80"D x 96"H
Approximate Weight......................9300 Lbs.
