> Prince control valve - 3 way/3 position, model# SVW1AA1
Prince control valve - 3 way/3 position, model# SVW1AA1
Prince Control Valve - 3 Way/3 Position, Model# SVW1AA1
Sectional body hydraulic directional control valves for mobile and industrial hydraulic systems. For use with single-acting cylinders. U.S.A.

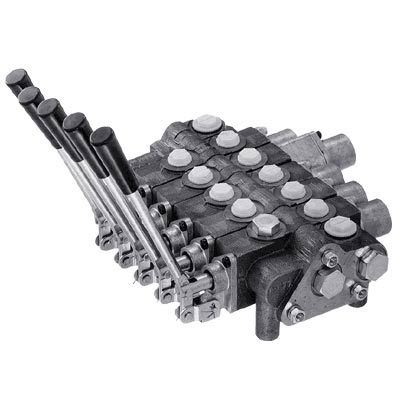

Product shown is representational; actual unit is single-valve body only. Max. Flow (GPM): 12, Inlet Port (in.): 7/8-14 ORB, 10 SAE, Outlet Port (in.): 7/8-14 ORB, 10 SAE, Working Port (in.): 3/4-16 ORB, 8 SAE, Max. PSI: 3,000, Directional Control: 3 way, 3 position, Adjustable Release Pressure PSI: 1,500 - 3,000
* Adjustable relief preset between 2000 PSI and 3000 PSI
* 1-6 sections per valve bank
