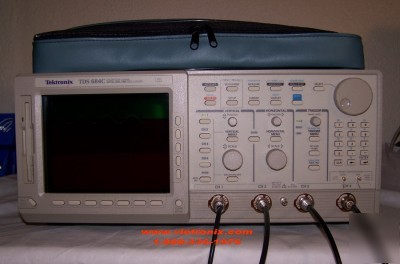

> Tektronix TDS684C 1GHZ 4 channels digitial oscilloscope
Tektronix TDS684C 1GHZ 4 channels digitial oscilloscope
Tektronix TDS684C 1Ghz 4 Channels Digitial Oscilloscope
Unit Included: Installed Options - 13 - 1F - 2F. Front Cover. It will also come two reference manuals and with a CD-ROM of the Programming, User, Service, Reference and Technical Manuals.
The Tektronix TDS684C 1Ghz oscilloscope is a graph-displaying device. It draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Tektronix TDS684C oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Frequency Range Bandwidth= 1Ghz
Number of Channels = 4 Ch.
5Gs/s sample rates on all channels Simultaneously for Full Bandwidth Single-shot Capture.
Max. Vertical Sensitivity = 10V/div
Min. Vertical Sensitivity = 1mV/div
