> 2006 southwestern ind. trak trl 1630SX cnc manual lathe
2006 southwestern ind. trak trl 1630SX cnc manual lathe

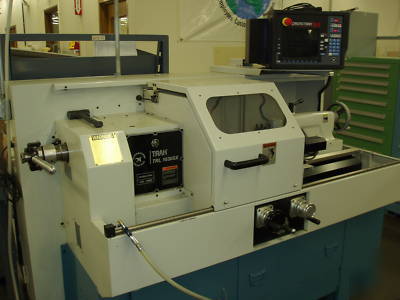

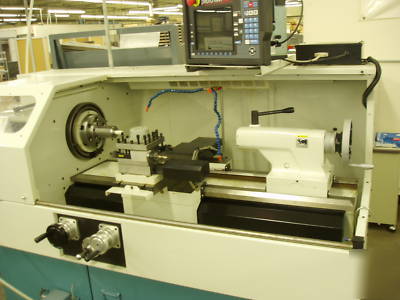

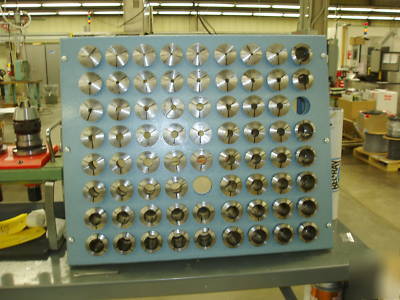

This 2006 Southwestern Industries Trak TRL 1630SX is in emaculate condition, as you can see from the pictures, and has had very limited use. All collets in the photos will be included with purchase. The machine comes equipped with Advanced Features and Traking, 4 position Star Indexer Tool Post, Tail Stock, Remote Stop/Go Switch, and Coolant Pump. Please contact Jason Stob (***) 790-3358 or Everett Dahlberg (***) 930-9646 with any and all questions.
Control ............................................................. Prototrak SLX
Swing Over Bed ............................................................................. 16
Distance Between Centers ............................................................................. 30
Swing Over Cross Slide ............................................................................ 8.6
Cross Slide Travel ............................................................................ 8.5
Spindle Thru-Hole .......................................................................... 2,12
Spindle Horsepower ........................................................................ 7.5 HP
Spindle Speed .......................................................... 150-2500 RPM
Spindle Nose ......................................................... D1-6 (Camlock)
Tool Post ................................................................. 4 Position
Max Rapid Feed X ..................................................................... 100 IPM
Max Rapid Feed Z ..................................................................... 150 IPM
Tail Stock Quill Travel ............................................................................ 6.3
Tail Stock Quill Dia. .......................................................................... 2.36
Tail Stock Quill Taper .......................................................................... MT-4
Machine Weight ................................................................... 2750 Lbs.
Machine Dimensions ...................................................87 L x 45 W x 67 H
4 Position Star Indexing Tool Post
***BOTH MANUAL or CNC OPERATION***
