AT6011 digital spectrum analyzer&tracking GENERATOR1GHZ

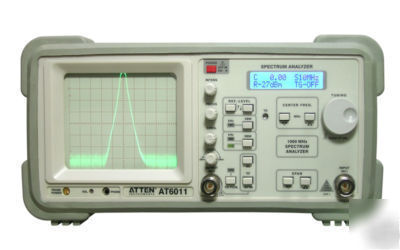

ATTEN AT6011 Digital Spectrum Analyzer
AT6011 s Tracking Generator s Specifications:
Frequency range: 0.15MHz~1050MHz
Output level range:-50dBm~+0dBm (in 10dB steps and vary)
Output attenuator: 0~40dBm (4*10dB)
Output attenuator accuracy: 2dB
Tracking generator (AT6011 only)
Tracking generator is a special signal generator. when unite with the spectrum analyzer, tracking generator have produce a signal ,then its frequency is also the spectrum s signal .It can precision produce a signal because it used the same VCO oscillator. And it can precision track the signal in the whole sweep frequency model. As this, the full sweep range the generator output a full frequency span as the spectrum span. When the zero span output a simply carrier wave.
Tracking signal generator is occurred by mixing the spectrum analyzer s first mixer and generator s internal fix frequency phase-lock oscillator. Spectrum analyzer/tracking generator system have two configuration s applications: opening circuit and close circuit. In the opening applications, unknown signal input the spectrum analyzer and the tracking generator s output connect the counter. This configuration is in order to select the precision
And high sensitivity to test the frequency, at the time spectrum analyzer will tune to the need test frequency and set to the zero span state.
50 MHz minute adjustment Frequency
CATV and communications machine inspection: with the impedance converter (50 Ohm converter to 75 Ohm)
Signal listening function: analyzes the non-encrypted content of radio stations, identify the influence radio by noise signals.
Point frequency mode and Sweep mode
Frequency Measurement Extension
* With the Frequency Expander AT5000-F1, the measure frequency can expand to 2000MHz (qualitative measurement), the measuring range is 1050 MHz ~ 2050 MHz. But
it can only be used for input channel expansion, not suitable to the Tracking Generator.
* With the Frequency Expander AT5000-F2, the measure frequency can expand to 3000MHz (qualitative measurement), the measuring range is 2050 MHz ~ 3050 MHz. But
Electromagnetic Compatibility Test (EMC)
* Conducted interference test: With the AT-166 conducted interference interface
* Radiated interference test: With the AZ-530-E electric field monopole probe
* Internal Circuit Interference test: With the AZ-530-M magnetic field probe
* Internal circuit Checking and repairing Test: With the AZ-530-H high-impedance probe
Operation temperature:+10 +40
Line Voltage range: 220VAC 10% 50Hz~60Hz
NET Weight: AT6011 about 8.5kgs The packages weight can be up to 11.5Kg.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
